Digital Multimedia Receiver
The MVH-300EX is a new entry-level in-dash multimedia a/v receiver designed to improve in-vehicle entertainment and connectivity with your smartphone. Enjoy features such as built-in Bluetooth® for hands-free calling and audio streaming. Audio/video playback from USB. Safety features such as backup camera ready and much more.
About the Pioneer MVH-300EX
Nothing beats the “new car” feeling like adding a 7″ touchscreen receiver to your dashboard. With Pioneer’s MVH-300EX touchscreen receiver, you get a vibrant display and 112 different colors to match the radio’s illumination to the interior lighting of your vehicle for a factory feel. A touchscreen also makes it easier to manage music sources. Furthermore, album art with song and performer information simplifies music selection (and more fun). You’ll also have a lot of video display space if you add a backup camera. In addition, this Pioneer stereo features Bluetooth® hands-free calling, and wireless audio streaming.
Hands-Free Calling and Audio Streaming
Stay safe and obey local hands-free laws with built-in Bluetooth (HFP). Easily pair a Bluetooth-enabled phone to the MVH-300EX without having to go through complicated settings. When a registered Bluetooth device is in close proximity to the receiver, the auto connection function automatically pairs the two units.
From hands-free calling, wireless audio streaming (A2DP) with artist, album, and song search, simple pairing, and control audio (AVRCP), Bluetooth® wireless technology has made life
in the vehicle much more convenient. The MVH-300EX with Bluetooth also includes better call quality reception using the new Wideband Speech Handsfree Profile 1.6. Wideband Speech nearly doubles the bandwidth of frequencies of a normal Bluetooth call.
Other features include the ability to browse music libraries on smartphones wirelessly.
Android Music Support
Users of Android devices running operating system 4.0 or later can connect and listen to music stored on their device to the MVH-300EX without the need for an app. The process is made possible using Media Transfer Protocol (MTP). MTP allows the receiver to recognize the Android smartphone as a music storage device. Users can now access music via USB stored on an Android device and operate basic operations like FF, REW, Play, Pause, Random Play, and Repeat. Metadata information such as track, artist, and album name can be displayed.
USB Direct Control for iPhone
Pioneer’s MVH-300EX is ready to roll with direct connectivity to your iPod or iPhone for music and video via USB interface cable (sold separately) depending on your iOS device. Song, artist, time, and album information are beautifully displayed on the 7″ touchscreen.
The system’s wired USB connection provides direct digital signal transfer from the device for clean, clear sound while providing 1.5 amp of current to keep your iPod/iPhone charged.
Back-up Camera Ready
Back-up camera input enables you to add a reverse (rear-facing) camera that can assist with rear visibility, towing, or parking.

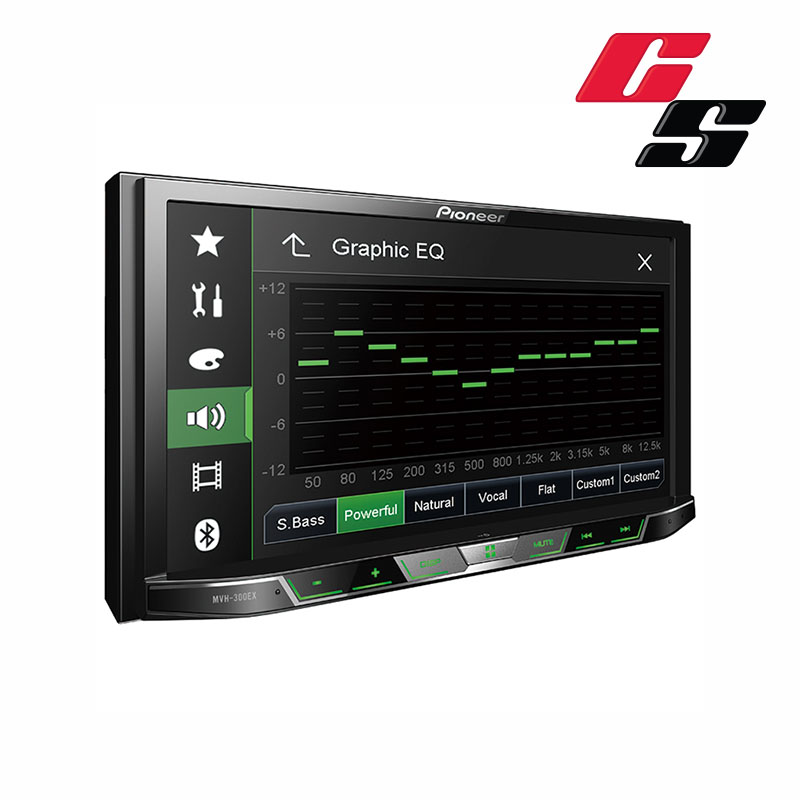

Customize Your Colors
Select among five colors (blue/red/amber/green/violet) for the display and 112 different colors to match unit illumination to your vehicle’s interior lighting. Also choose from several background images to suit your mood.
What’s in the Box
- Digital receiver w/ fixed 6.94″ touchscreen monitor (10A fuse inserted in chassis)
- Wiring harness
- 58″ USB extension cable
- Microphone w/ mounting-bracket (attached 13′ cable terminated by a right-angle 2.5mm connector)
- Two-sided tape
- 6 Pan-head ISO screws (M5 x 6mm)
- 6 Flat-head ISO screws (M5 x 6mm)
- Quick Start Guide
- Installation Manual
- Warranty Information
Caution: Read the operation manual as well as all instructions and cautions before use. Pay attention to the road, limit glances to the device, and do not use any feature if it cannot be operated both safely and legally in your location and environment. Distracted driving may result in serious injury, including death. Certain functions such as video playback and keyboard input are restricted through a parking brake interlock system.
- 7″, 16:9
- WVGA (800 x 480)
- Clear Resistive
- 5 Display Colors, 112 Key Colors
MVH-300EX with BLUETOOTH®
- HFP 1.6
- AVRCP 1.6
- 18 FM, 6 AM
DIGITAL MEDIA PLAYBACK
- 3 (2V)
- MOSFET 50W x 4
- Single, Rear (1.5 Amp)
- English, Chinese (Simplified), French, Spanish, Portuguese
- 1 Year
