Description

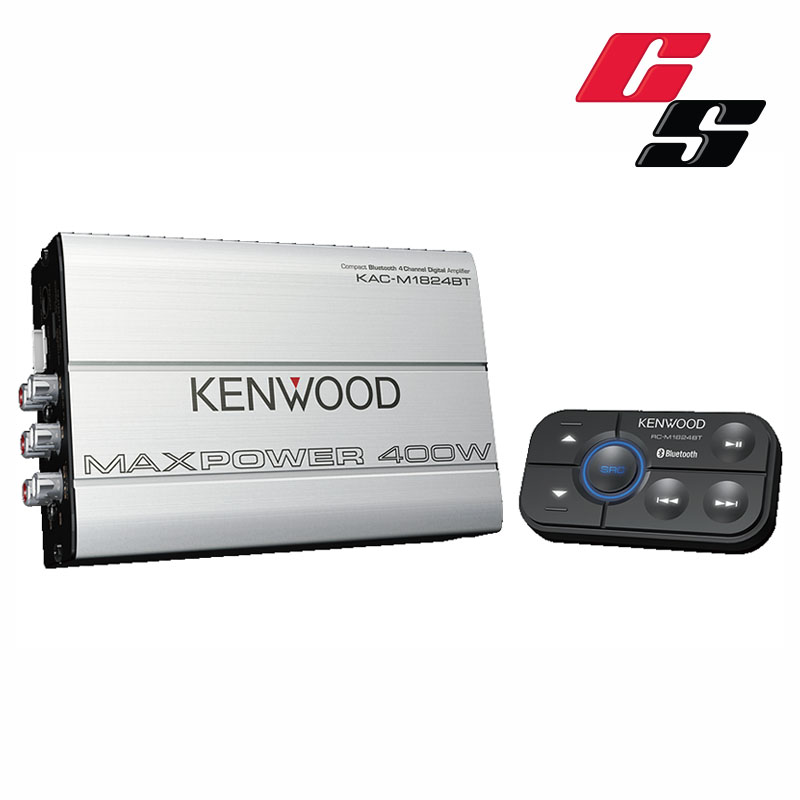

Kenwood KAC-M1824BT
Compact 4-channel Kenwood KAC-M1824BT amplifier with Bluetooth® connectivity — 45 watts RMS x 4
Kenwood KAC-M1824BT Built-in Bluetooth
- With today’s smartphones hosting a wide variety of listening choices such as stored music, internet radio, podcasts, etc., it is no wonder that customers want to use this as their primary listening source. Bluetooth offers the easiest and most popular connection, KAC-M1824BT is not only your standalone Bluetooth gateway but if used with an in-dash receiver, it will double the power of a typical CD receiver with its built-in 45Watts x 4 of amplification. A water-resistant controller can be used to adjust volume and change tracks.
-
Kenwood KAC-M1824BT Multi-Application
- Many of today’s Powersports have very limited space to work in and tend to be a harsh environment for electronics because of the exposure to outdoor environments. KENWOOD’s compact performance amplifiers are small in size so they fit even the most limited installation areas. The amplifiers also use a conformal coated main PCB (printed circuit boards) which offer extra layers of protection to help prevent moisture or damp air from damaging the product.
Kenwood KAC-M1824BT IPX5 REMOTE CONTROL
- The Kenwood KAC-M1824BT remote control is designed to be mounted in places that are exposed to the elements. To operate in these conditions the remote control has an IPX-5 certification. This water-resistant certification is the grade at which a device continues to function when directly subjected to 12.5 L of water per minute from all directions using a 6.3 mm inside diameter nozzle at a distance of approximately 3m for at least 3 minutes. This level of water resistance makes it perfect for ATV, Motorcycles, and boats.
| Title |
Compact Bluetooth 4 Channel Digital Amplifier |
|
|---|---|---|
| Amplifier Type | Class D | |
| CEA-2006 Primary Ratings | Power Output | 45Watts RMS x 4 at 4 Ohms and ≤1%THD+N |
| Signal-to-Noise Ratio | 74dBA (Reference: 1Watt into 4Ohms) | |
| Maximum Power Output | MAX POWER | 400W |
| Specifications | Signal to Noise Ratio | 90dB (Reference: Rated Power into 4Ohms at 14.4V) |
| Frequency Response | 20Hz-20kHz (+0dB, -1dB) | |
| Input Impedance | 10k ohm | |
| Speaker Impedance | 4Ω | |
| Terminals | Battery & Ground | MOLEX Connector with 1500mm Wire |
| Speaker Output | MOLEX Connector with 1500mm Wire | |
| Line In | RCA (Ni) | |
| Line Out | RCA (Ni) | |
| General | Dimensions(WxHxD) | ‘5-11/16 X ‘1-3/4 X ‘3-7/8 inch |
| Weight (kg) | – | |
| Operating Voltage | 14.4V（11-16V allowable） | |
| Key Features | CEA-2006 Compliant Class D 2 Ohms Load Capability Speaker Level Input Signal Sensing Turn-on Power MOS-FET Switching Power Supply Extruded Aluminum Heat Sink Design Line Output Terminals for Extension BLUETOOTH |
|
| Others | apt-X AAC Made for iPod & iPhone |
|
