Description

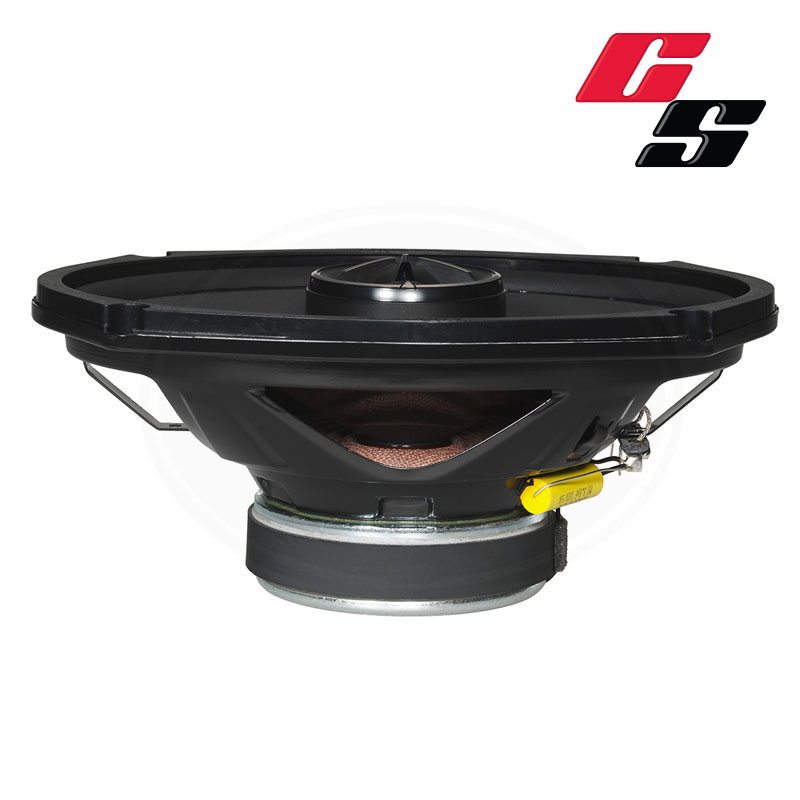

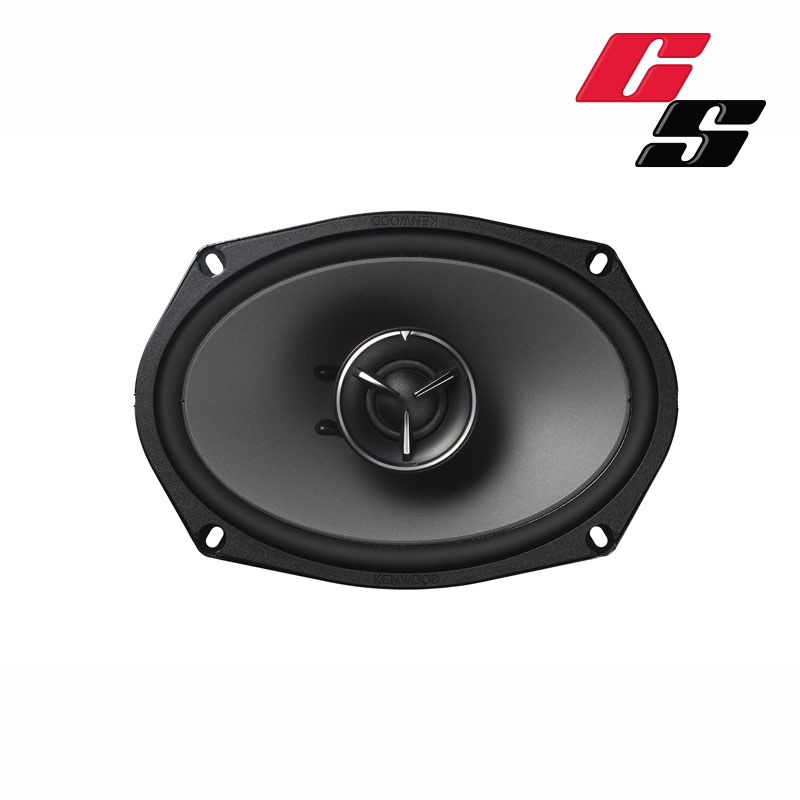

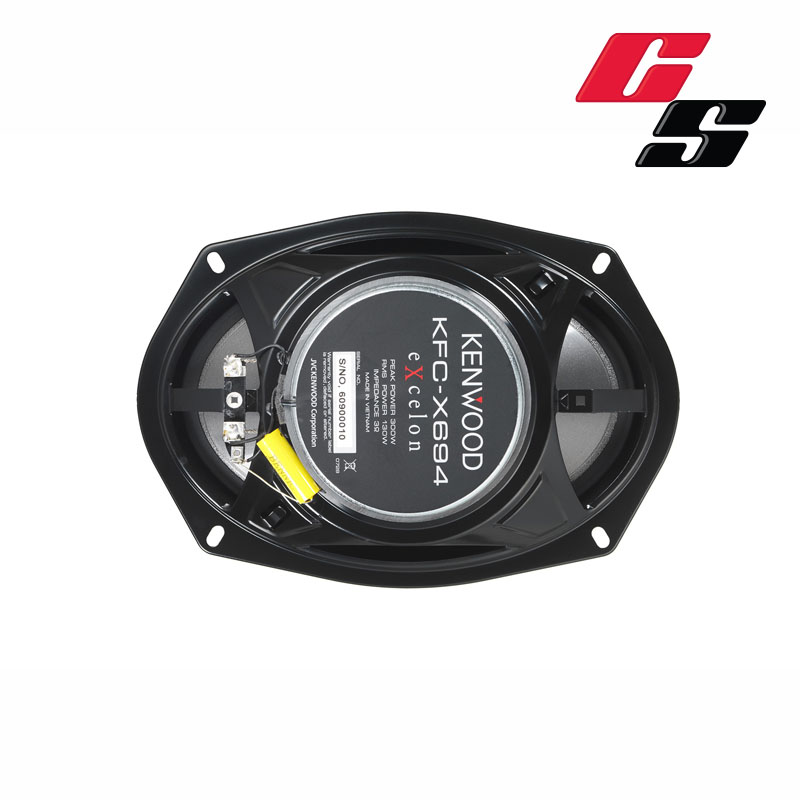

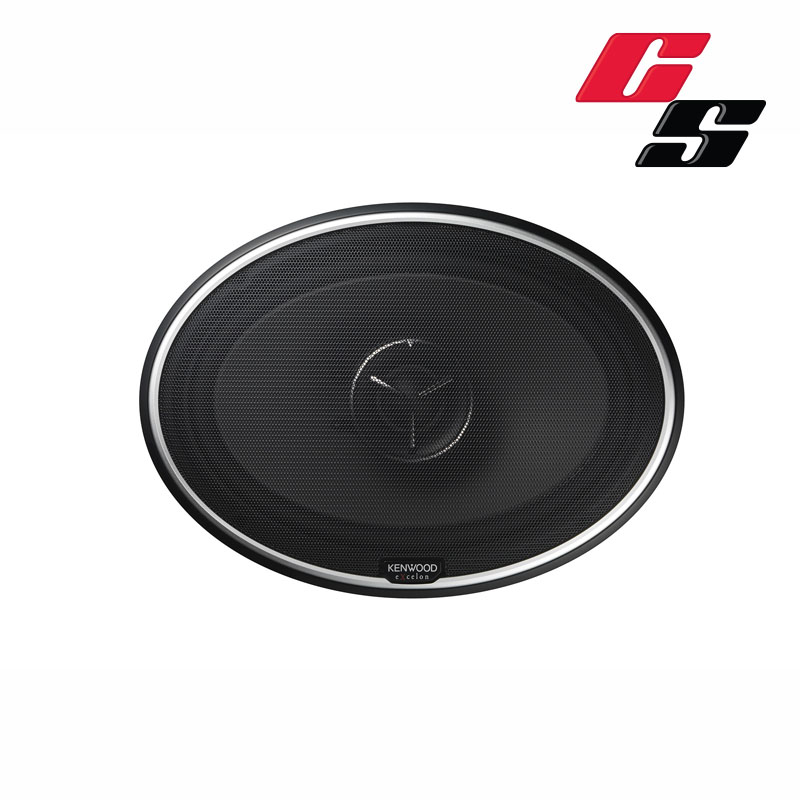

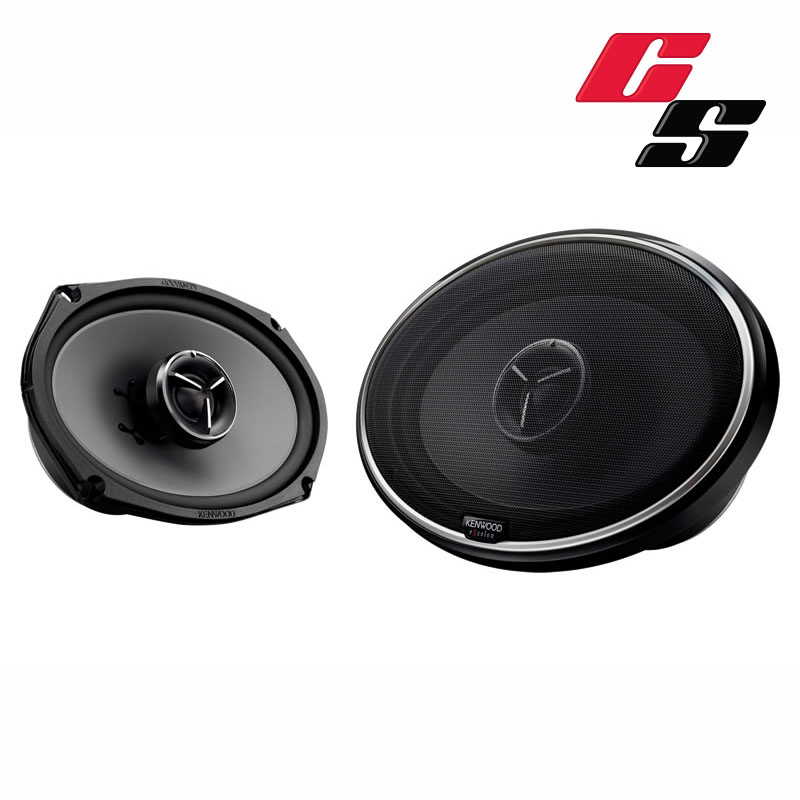

Kenwood Excelon KFC-X694
Excelon Series Kenwood Excelon KFC-X694 6″x9″ 2-way car speakers
About the Kenwood Excelon KFC-X694
Count on Kenwood
I know your options for new speakers are daunting, but the 2-way car speakers of these Kenwood Excelon X694 X694 6″x9″ are on your list. Their well-known 2-year guarantee is an important symbol of sound consistency, which these classics should predict. With a solid polypropylene woofer and a sturdy butyl rubber surround, you’ll get rich, complete sound that prevents weather and offers help regardless. A significant 1-3/16″ soft dome tweeter without any difficulty provides all of the delicate high-frequency information.
Serious power handling
You will appreciate high-end audio with speakers that will make each drive a happy one. And these well-built speakers manage up to 130 watts of RMS so that when powered up with a nice amplifier you optimize its output.
| Model Name | KFC-X694 | ||
|---|---|---|---|
| System | 2way-2speaker | ||
| Power Handling | KITS Spec | ||
| Peak Input Power | 300W | ||
| Maximum Input Power | 110W | ||
| Rated Power | 55W | ||
| CTA Spec (CTA-2031 Compliant) | |||
| RMS Power | 130Watts RMS | ||
| Impedance | 3Ω | ||
| Sensitivity | 89dB/ W at 1 m | ||
| Frequency Response | 51 Hz~20,000 Hz | ||
| Woofer | Diaphragm | P.P. Cone | Gray |
| Size | 153×229 mm | 6×9 inch | |
| Surround | Rubber | ||
| Basket | Steel | ||
| Magnet | Ferrite | φ100 x t17 | |
| Tweeter | Diaphragm | Soft Dome | |
| Size | 30 mm | 1-3/16 inch | |
| Magnet | Nd | Up to Engineer | |
| Dimension | Woofer | ||
| with Grille | |||
| Width | 266.4mm | 10-1/2 inch | |
| Height | 193.4mm | 7-5/8 inch | |
| Depth | 113.5 mm | 4-7/16 inch | |
| without Grille | |||
| Width | 236.4 mm | 9-5/16 inch | |
| Height | 164 mm | 6-7/16 inch | |
| Depth | 104.5 mm | 4-1/8 inch | |
| Cut-out Diameter | 218.0 x 149.0 mm | 8-9/16 x 5-7/8 inch | |
| Tweeter Height | 19.5 mm | 3/4 inch | |
| Mounting Depth | 85.0 mm | 3-3/8 inch | |
| Accessory | Grille | 2 pcs | |
| Grille Holder | ○ | ||
| Punching Net | ○ | ||
| Network | |||
| Tweeter | with Woofer Frame | -6dB/oct | |
| Screw sets | |||
| Binding Head Tapping Screw | φ4 x 40 mm | 8 pcs | |
| Hexagon Head Bolt | M4 x 70 mm | 8 pcs | |
| Hexagon Nut | M4 | 8 pcs | |
| Flat Washer | M4 | 8 pcs | |
| Flat Washer | φ4 | 8 pcs | |
| Spring Washer | φ4 | 8 pcs | |
| Speaker Cord | 0.3 m | 1 set | |
| Adhesive Tape | ○ | 1 set | |
