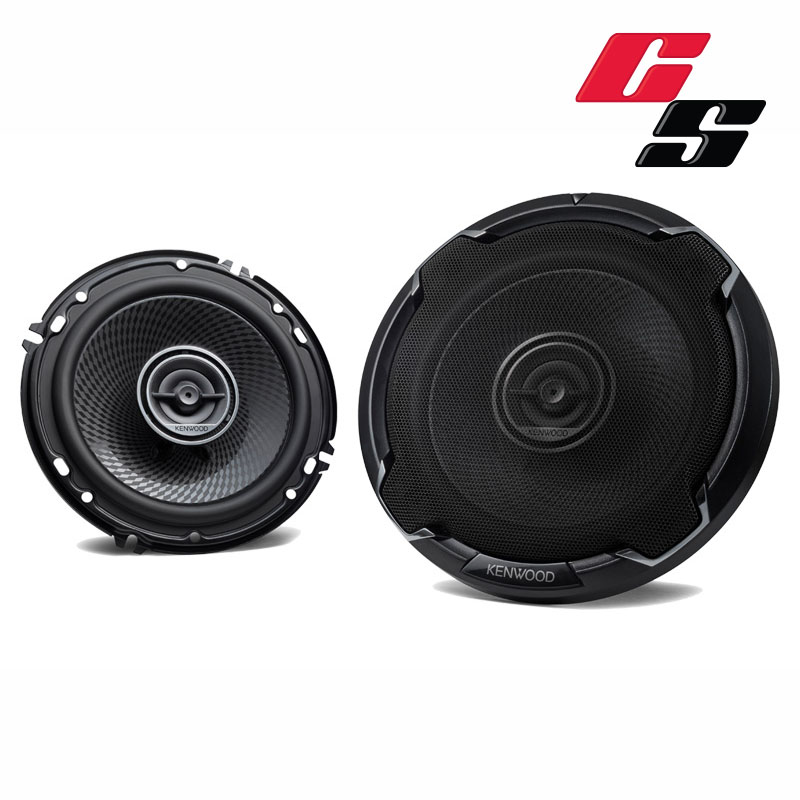

Performance Series Kenwood KFC-1696PS 6-1/2″ 2-way car speakers
About the Kenwood KFC-1696PS
How well do you feel as you go through the washing car? When you start the car, Kenwood’s Performance Series speakers will clean up your dirty factory sound. In these speakers, Kenwood introduced new technologies to give you the highest return in value.
These six-1/2″ speakers from KFC-1696PS rock a polypropylene cone with the diamond array pattern to eliminate distortion. The balanced dome tweeter manages all the harmonic specifics and Kenwood’s patented Sound Field Enhancer improves its dispersion.
In order to increase the transition to higher frequencies, Kenwood’s Acoustic Sound Harmonizer uses mounting slots to achieve a clearer sound. Custom assembly grills are included.
Sound Field Enhancer
This unique shape of the tweeter creates a strong frontward sound as well as a wider sound field in 5kHz and higher frequencies.
Kenwood KFC-1696PS Acoustic Sound Harmonizer
Produces a smooth and natural sound by controlling woofer sound waves and allowing only certain frequencies to pass through the holes of the tweeter panel.
Factory Location Fit with Kenwood KFC-1696PS
The tweeter height is designed as low as possible, allowing the speakers to easily fit in most factory locations.
1. Black Painted Yoke and Plate
By implementing black paint on these parts, heat is released efficiently inside the magnetic circuit, resulting in a temperature reduction of the voice coil and improved durability.
2. New Woofer Damper Shape
Stress leveling points increase durability and provide a smoother sound response.
New Frame Design for Kenwood KFC-1696PS
An enlarged open area provides more bass and cleaner sound.
|Peak Input Power||320W|
|Rated Input Power||100W|
|Woofer Features||6-1/2 inch Polypropylene Cone|
|Tweeter Features||1-3/16 inch Balanced Dome|
|Sensitivity||88 dB/ W / m|
|Frequency Response||75Hz -24KHz|
|Cutout Diameter||4-7/8 inch|
|Mounting Depth||1-7/8 inch|
|Weight of Magnet(Woofer)||0.6lbs|
