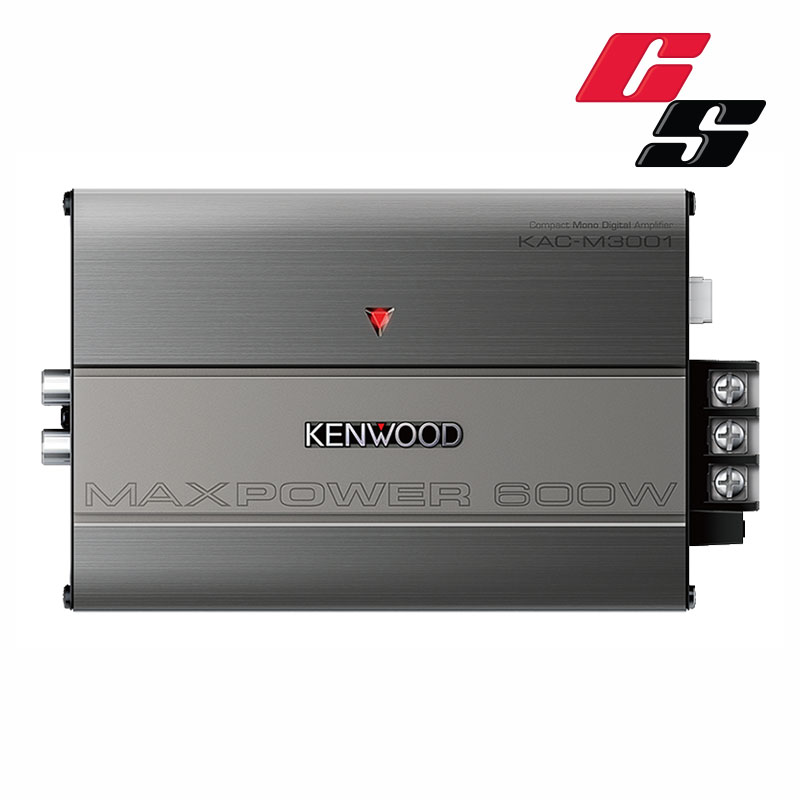

Compact Kenwood KAC-M3001 mono subwoofer amplifier — 300 watts RMS x 1 at 2 ohms
Many of today’s power sports have very limited space to work in and tend to be a harsh environment for electronics because of the exposure to outdoor environments. KENWOOD’s compact performance amplifiers are small in size so they fit even the most limited installation areas. The amplifiers also use a conformal coated main PCB (printed circuit boards) which offer extra layers of protection to help prevent moisture or damp air from damaging the product.
Power a sub wherever you go with Kenwood KAC-M3001
The lightweight mono subwoofer Kenwood KAC-M3001 amplifier provides up to 300 watts of RMS for the bass on your vehicle. That is enough to hear the bass distinctly as you journey along with the noise of the road, trail, or waterway. This little powerhouse can almost suit everywhere, including a yacht, motorcycle, or ATV storage room, so that you can place the bass on whatever vehicle you choose.
Weather-resistant protection for music on the go with Kenwood KAC-M3001
Conformal covering covers the internal circuits from water and debris, but even under the harshest circumstances, the show will continue. A plastic-covered plug offers more security for the attachment in the subwoofer output terminal.
Kenwood KAC-M3001 High-level inputs ease installation
If you are using an aftermarket receiver or factory radio’s RCA cables, the KAC-M3001 can tolerate signals from just about any source. The amplifier senses the signal and activates it when you use the speaker-level inputs, so you do not need to run a remote turn-on to your car stereo.
|Title||Compact Mono Digital Amplifier|
|Amplifier Type||Class D|
|CEA-2006 Primary Ratings||Power Output||200 Watts RMS x 1 at 4 Ohms and ≤1%THD+N|
|Signal-to-Noise Ratio||78dBA (Reference: 1Watt into 4Ohms)|
|Maximum Power Output||600W|
|Specifications||Signal to Noise Ratio||97dB (Reference: Rated Power into 4Ohms at 14.4V)|
|Frequency Response||20 Hz-200Hz (+0dB, -3dB)|
|Input Impedance||10k ohm|
|Speaker Impedance||4Ω (2Ω to 8Ω allowable)|
|Audio Section||Low-Pass Filter||Built-in Variable Low-Pass Filter (50Hz-200Hz, -24dB/oct)|
|Filter Selector 1||–|
|RCA Input Sensitivity||0.2 V – 5.0 V|
|Speaker Level Input Sensitivity||4.0 V – 12.0 V|
|Terminals||Battery & Ground||Screw Type Terminal Block (Ni) (M4)|
|Speaker Output||MOLEX Connector with AWG16 200mm Wire|
|Line In||RCA (Ni)|
|General||Dimensions(WxHxD)||‘5-11/16 X ‘1-3/4 X ‘3-7/8 inch|
|Operating Voltage||14.4V（11-16V allowable）|
|Current Consumption||20 A|
|Key Features||CEA-2006 Compliant|
2 Ohms Load Capability
Speaker Level Input
Signal Sensing Turn-on
Power MOS-FET Switching Power Supply
Extruded Aluminum Heat Sink Design
