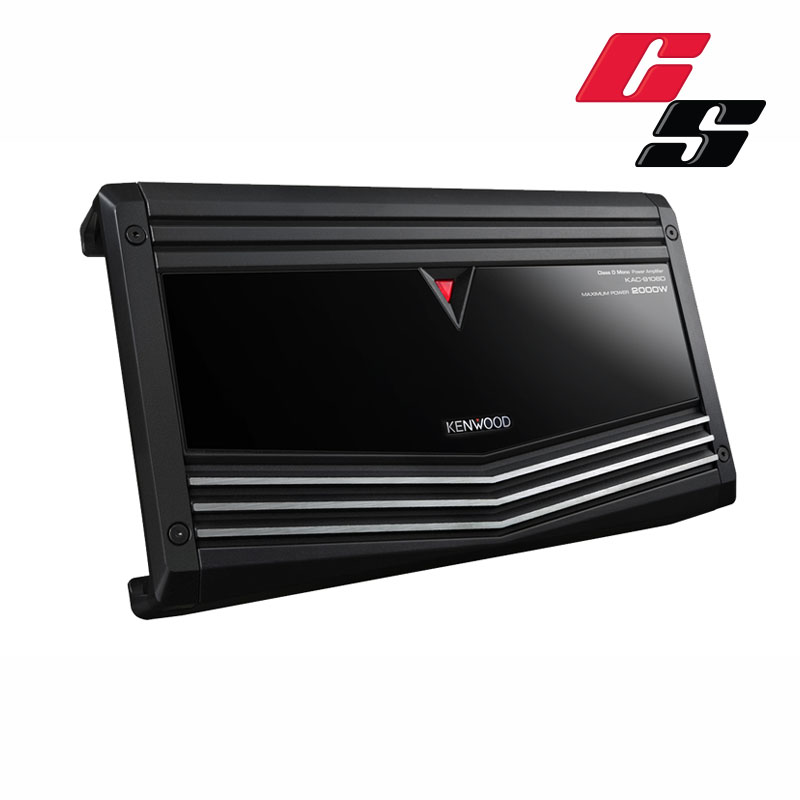

Kenwood KAC-9106D
About the Kenwood KAC-9106D
Kenwood KAC-9106D is a Reliable Performer
Kenwood produces tough, robust amplifiers that provide excellent sound quality and consistent performance. When you power your subwoofer with the Kenwood KAC-9106D Performance Series amplifier, from the rough stroke of the rhythm section to the subtle thumps of a silent kick drum, you hear the big tonal color, effect, and nuance in your bass.
Up to 1,000 watts of RMS are mounted on your subwoofer with the Kenwood KAC-9106D mono amp. You should customize the signals by using a low pass and subsonic filter such that your subwoofer/box combination can provide the best possible tone. If you want to really fatten up the pitch, you can choose up to 18 dB of bass boost.
This flexible amplifier has speaker levels and signal sensing capabilities so that you can use this amplifier in almost any kind of setup. Aluminum cover plates cover the contacts and controls of the amp, providing a clean and neat appearance for your installation.
Mono subwoofer Kenwood KAC-M1824BT amplifier — 1,000 watts RMS x 1 at 2 ohms
Title | Class D Mono Power Amplifier | |
---|---|---|
Amplifier Type | Class D | |
CEA-2006 Primary Ratings | Power Output | 500Watts RMS x 1 at 4 Ohms and ≤1%THD+N |
Signal-to-Noise Ratio | 76dBA (Reference: 1Watt into 4Ohms) | |
Maximum Power Output | MAX POWER | 2000W |
Power Output | Rated Power at 14.4V | 500Watts RMS x [ch] (4 Ohms, 20-200Hz, ≤1.0% THD) 1000Watts RMS x [ch] (2 Ohms, 100Hz, ≤1.0% THD) |
Specifications | Signal to Noise Ratio | 100dB (Reference: Rated Power into 4Ohms at 14.4V) |
Frequency Response | 20Hz-200Hz (+0dB, -3dB) Class D |
|
Input Impedance | 10k ohm | |
Speaker Impedance | 4Ω (2Ω to 8Ω allowable) | |
Audio Section | Low-Pass Filter | Built-in Variable Low-Pass Filter (50Hz-200Hz, -24dB/oct) |
Infrasonic Filter | Variable Infrasonic Filter (20Hz-50Hz, -24dB/oct) | |
Bass Boost | Bass Boost Control (40Hz, 0dB-+18dB) | |
RCA Input Sensitivity | 0.2[V] – 5.0 [V] | |
Speaker Level Input Sensitivity | 4.0[V] – 12.0 [V] | |
Terminals | Battery & Ground | Screw Type Terminal Block (Ni) (M6) |
Speaker Output | Screw Type Terminal Block (Ni) (M4) | |
Line In | RCA (Ni) | |
Line Out | RCA (Ni) | |
Speaker Input | JST Connector | |
General | Dimensions(WxHxD) | 335 [mm] x 56 [mm] x 192 [mm] 13-3/16 inch x 2-3/16 inch x 7-9/16 inch |
Weight (kg) | 2.8 [kg] 6.2 [lbs] | |
Operating Voltage | 14.4V(11-16V allowable) [V] | |
Current Consumption | 65 [A] | |
Key Features | CEA-2006 Compliant Class D 2 Ohms Load Capability Speaker Level Input Signal Sensing Turn-on Terminal Cover Power MOS-FET Switching Power Supply Cast Aluminum Heat Sink Design Line Output Terminals for Extension |
|
Others | Triangle Indicator |
Features & specs
Performance | ||
---|---|---|
RMS Power Output (Watts x Channels) | 500 x 1 | |
Peak Power Output (Watts x Channels) | 2000 x 1 | |
Power at 2 Ohms (Watts x Channels) | 1000 x 1 | |
Bridged Power (Watts x Channels) | N/A | |
Minimum Impedance Bridged | N/A | |
Minimum Impedance Unbridged | 2 | |
Minimum Impedance | 2 | |
Best Frequency Response | 20-200 Hz | |
THD at Rated RMS Power | 1% | |
Signal to Noise Ratio | 76 dB | |
Input Voltage | 14.4v | |
Features | ||
Amplifier Class | D | |
Low-Pass Crossover Frequency | 50-200 Hz | |
Low-Pass Slope (dB/octave) | 24 dB/octave | |
High-Pass Crossover Frequency | N/A | |
High-Pass Slope (dB/octave) | N/A | |
Bass Boost | 0-18 dB | |
Bass Boost Frequency | 40 Hz | |
Fan Cooled | No | |
Fuse Rating | 120 | |
Speaker Level Inputs | Harness | |
Preamp Outputs | 1 pair | |
Width (inches) | 13-3/16 | |
Height (inches) | 2-1/4 | |
Depth (inches) | 7-5/8 | |
Parts Warranty | 1 Year | |
Labor Warranty | 1 Year |
