Kenwood Excelon XR-1801P

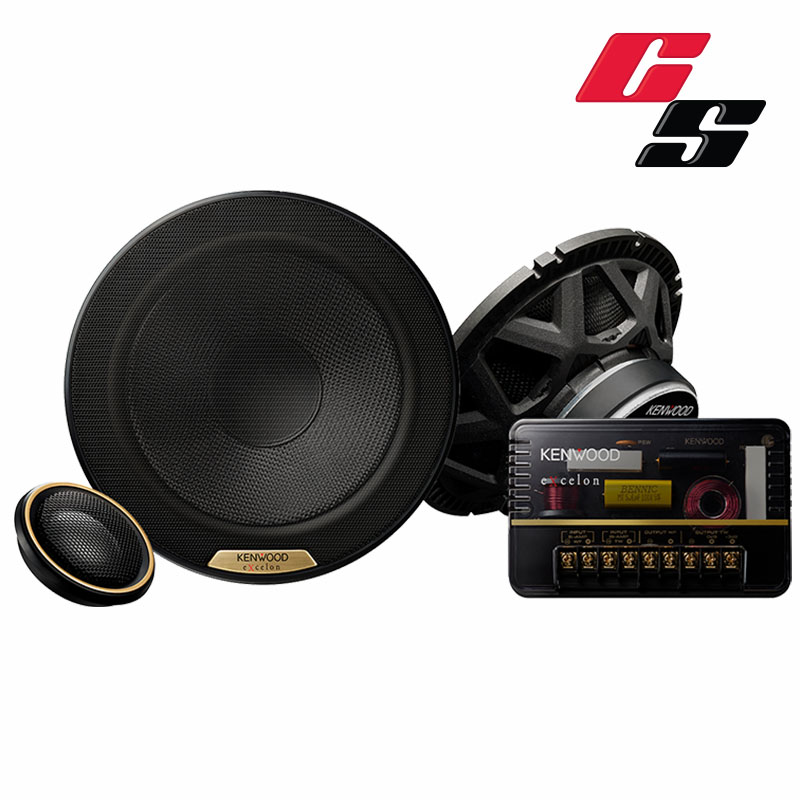

Excelon Series Kenwood Excelon XR-1801P 7″ component speaker system
About the Kenwood Excelon XR-1801P
Excelon, built big
Kenwood’s Excelon badge is their standard for quality sound and excellent performance, and this Kenwood Excelon XR-1801P component speaker system with a substantial 7″ woofer delivers the goods. Specially crafted for playing high-resolution audio files, these speakers use premium materials and design to enhance the audio signal from a high-performance amplifier and receiver. What that means for you is a life-like listening experience, free from distortion.
Premium components
The 7″ glass-fiber woofer cone delivers full, hearty sound, and its specially designed surround ensures endurance, play after play. The 1-3/16″ hard dome titanium tweeter brings striking detail to your music, upholding the artist’s intention from song to song. If you love high-res music, these tweeters reproduce frequencies up to 40,000 Hz, delivering the extended detail and strong imaging of your high-res FLAC or DSD files.
Kenwood also includes versatile mounting gear for a variety of installation of challenges.
Bring on the power
These exceptional speakers will handle up to 120 watts RMS, so you’ll maximize their performance when you power them with a nice amp. And the included external crossovers let you amplify the woofers and tweeters separately for an even stronger sound.
Installation note: You’ll need a pair of universal backstraps to install the tweeters in the factory locations.
RICH AND IMMERSIVE HIGH-RESOLUTION AUDIO
High-Resolution Audio is high-quality sound that exceeds CD standard. High-resolution audio captures and beautifully expresses all the details of your favorite music. Through ultra-high and low frequencies, immerse yourself in a rich and high-quality sonic experience.
![](https://www.kenwood.com/usa/car/excelon/xr-1801p/images/img01_a.png)
Smooth waveforms
![](https://www.kenwood.com/usa/car/excelon/xr-1801p/images/img01_b.png)
Loss of smoothness
![](https://www.kenwood.com/usa/car/excelon/xr-1801p/images/img01_c.png)
Fine waveforms
* The product with this logo is conformed to the High-Resolution Audio standard defined by the Japan Audio Society. This logo is used under license from the Japan Audio Society.

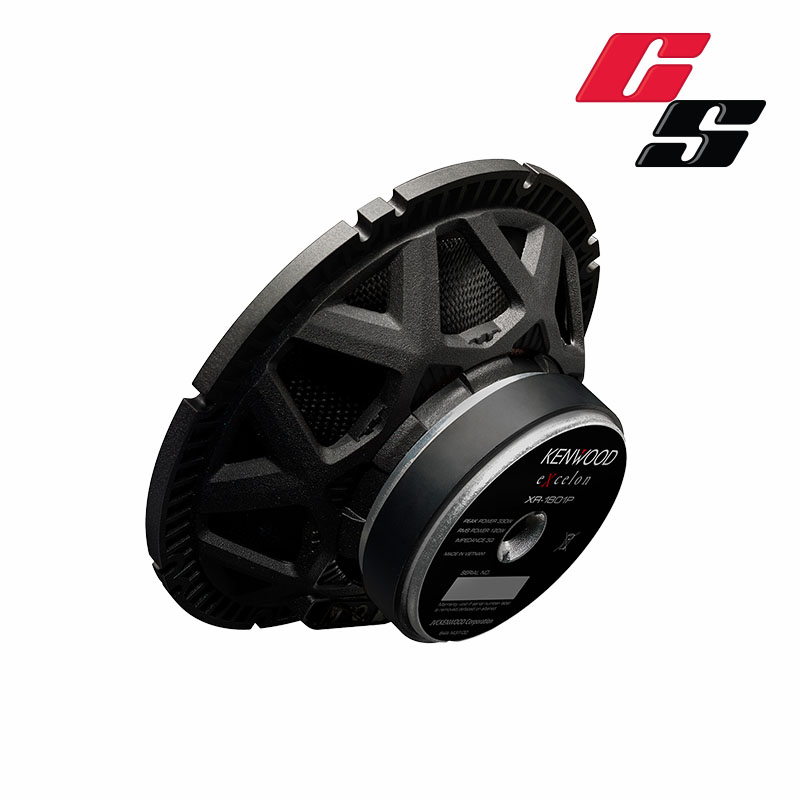

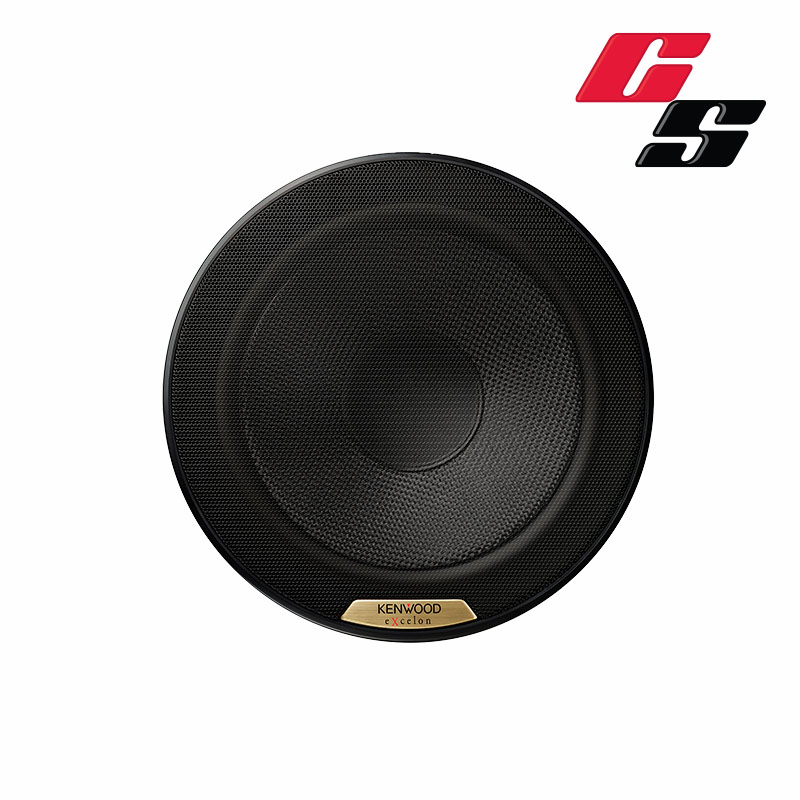

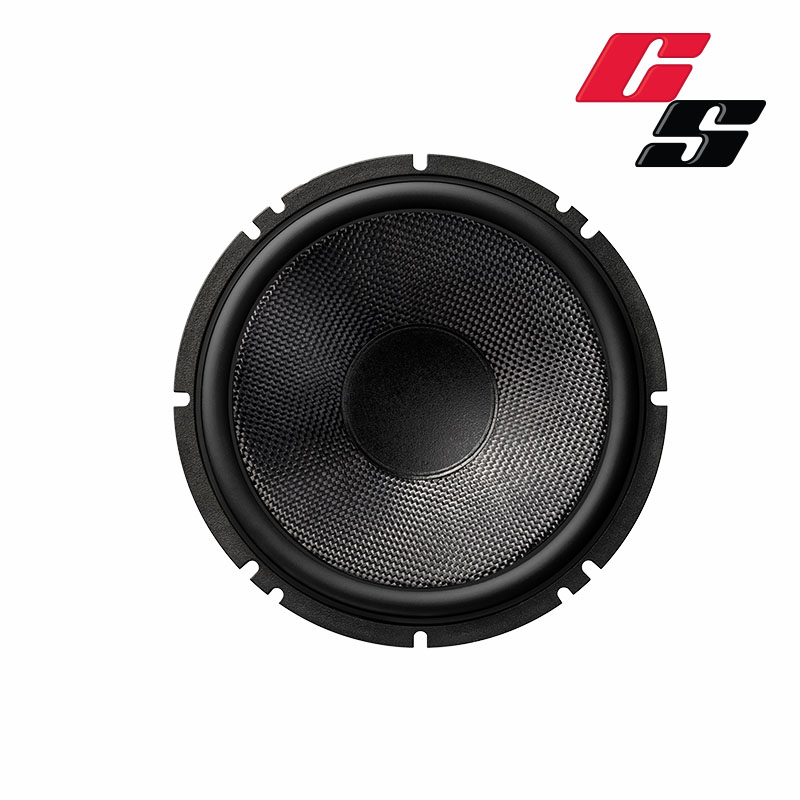

Kenwood Excelon XR-1801P GLASS FIBER CONE
The glass fiber cone combines high-strength with lightweight materials, allowing the speaker to reproduce all sounds from impactful bass notes to delicate tones.
![](https://www.kenwood.com/usa/car/excelon/xr-1801p/images/img02.png)
Kenwood Excelon XR-1801P WOOFER CAP WITH CIRCLE RIB
The circle rib provides enhanced woofer stability, ensuring the bass is deep and clear.
![](https://www.kenwood.com/usa/car/excelon/xr-1801p/images/img03.png)
SURROUND ROLL SHAPE
The asymmetrical thickness of the surround roll shape provides better-focussed bass.
![](https://www.kenwood.com/usa/car/excelon/xr-1801p/images/img04.png)

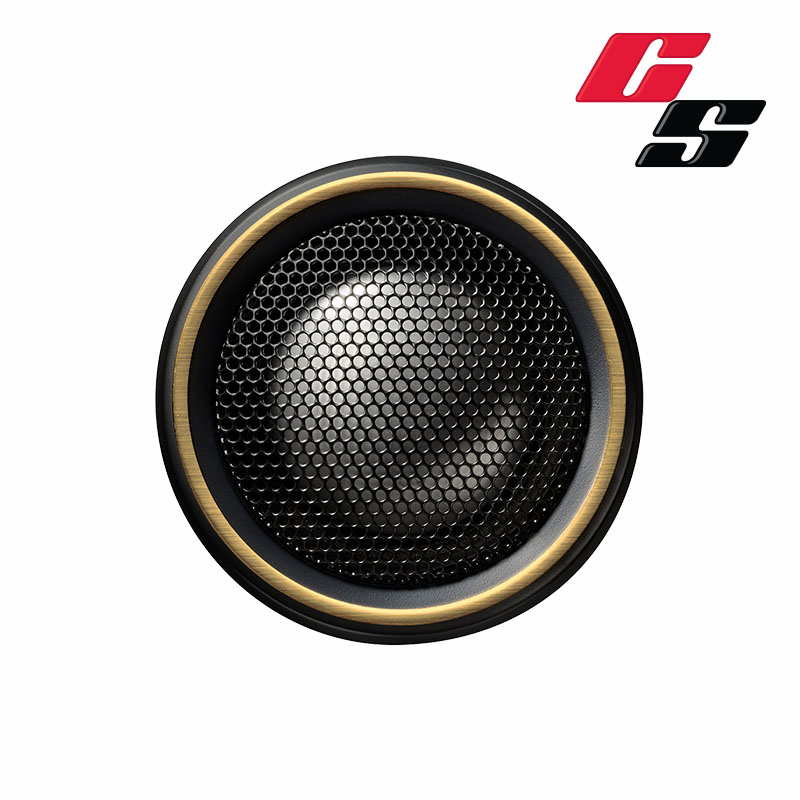

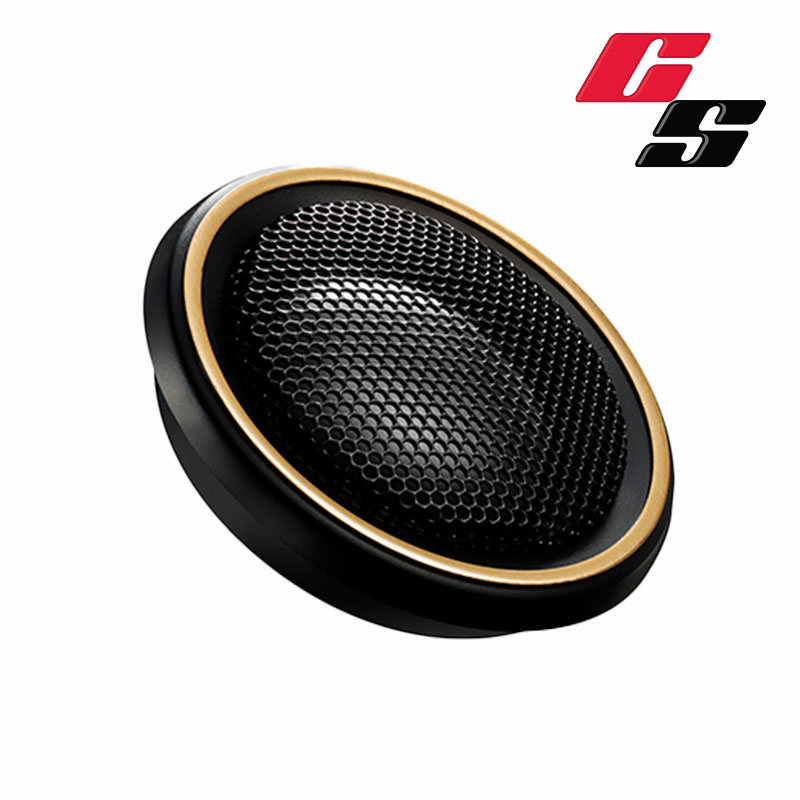

1-3/16” LARGE TWEETER DESIGNED FOR HIGH RESOLUTION
1-3/16” (30mm) tweeters have a larger surface area than most tweeters which allows clear reproduction of vocal sound up through the ultra high-frequency range. Both flush and surface mounting options are included.
With its compound curvature diaphragm, a large 1-3/16” (30mm) titanium hard dome provides the ultimate in high-frequency performance.
![](https://www.kenwood.com/usa/car/excelon/xr-1801p/images/img_tweeterSys.png)
NEW BI-AMP CONNECTION

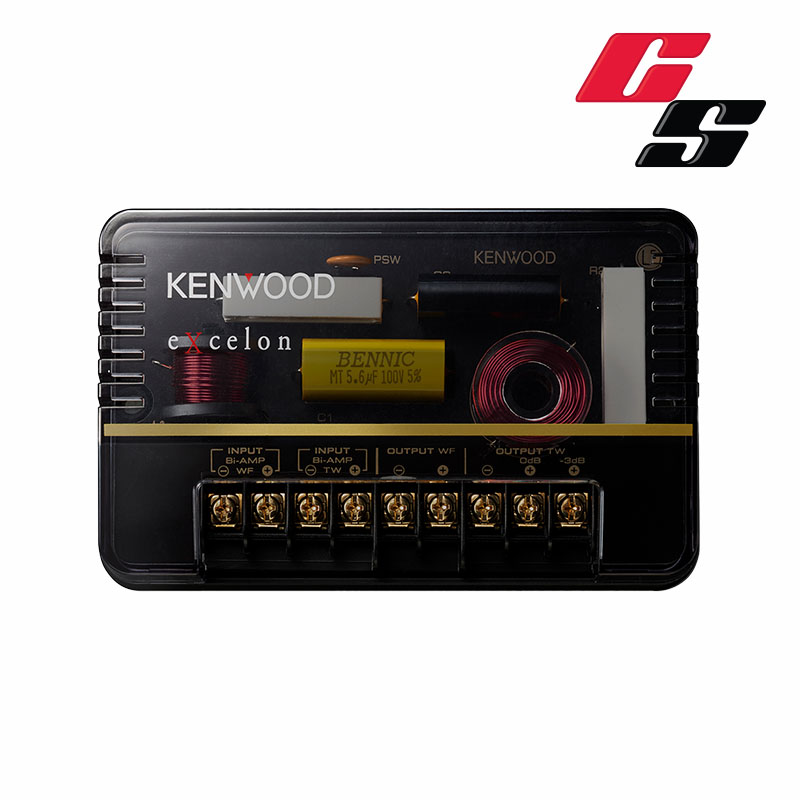

The XR-1801P’s include a bi-capable crossover network box, allowing you to power the tweeter and woofer individually from the XR401-4 or other combinations of individual amplifier channels. The network box is further optimized with a high-reliability poly switch and resistor to protect the tweeter from being overdriven.
![Connecting using the Bi-Amp system Regular Connection](https://www.kenwood.com/usa/car/excelon/xr-1801p/images/img_biamp.png)
FLUSH OR ANGLE MOUNT TWEETER
Mounting hardware is provided to enable both angled and flush mounting options.
![Angle Mount Flush Mount](https://www.kenwood.com/usa/car/excelon/xr-1801p/images/img07.png)
WOOFER MULTI-BRACKET
A multi-bracket is included to make installation easier in a variety of vehicle types.
![6"x 9" Bracket Multi-Use Bracket](https://www.kenwood.com/usa/car/excelon/xr-1801p/images/img08.png)
Kenwood Excelon XR-1801P General Features
Peak Input Power | 330W |
---|---|
Rated Input Power | 120W |
Impedance | 3Ω |
Woofer Features | 7 inch Glass Fiber Cone |
Tweeter Features | 1-3/16inch Hard Dome |
Specifications | |
Sensitivity | 87 dB/ W / m |
Frequency Response | 35Hz-40kHz (-10dB) |
Cutout Diameter | 6 inch |
Mounting Depth | 2-7/16 inch |
