Kenwood Excelon KFC-X183C-3

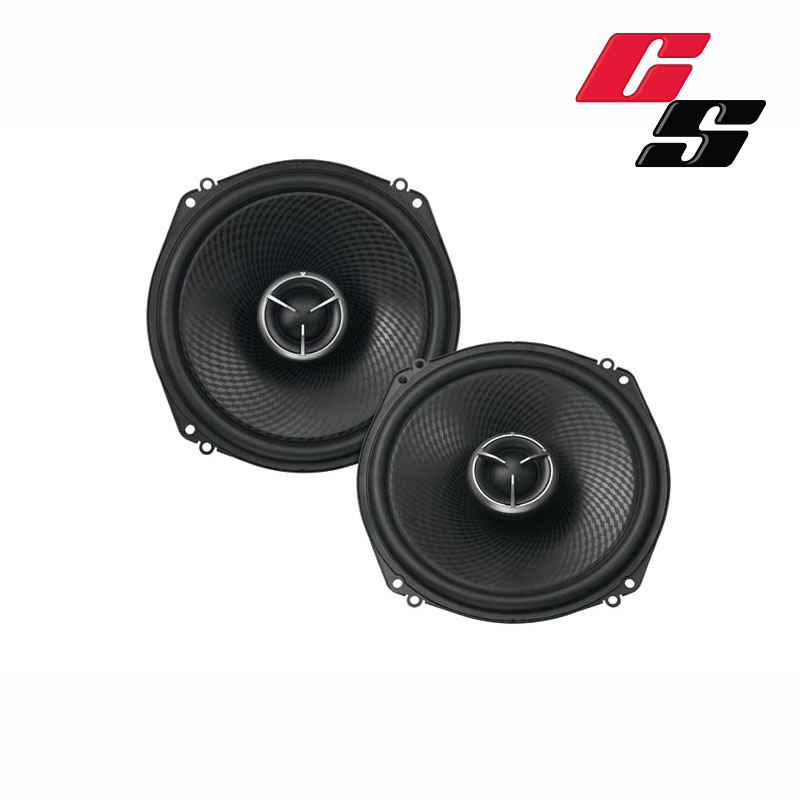

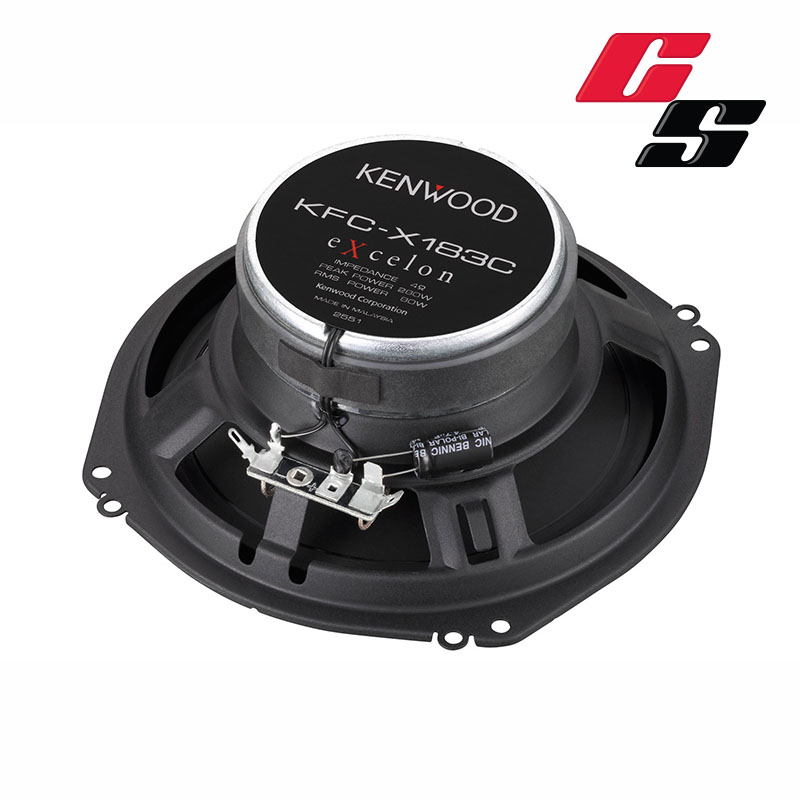

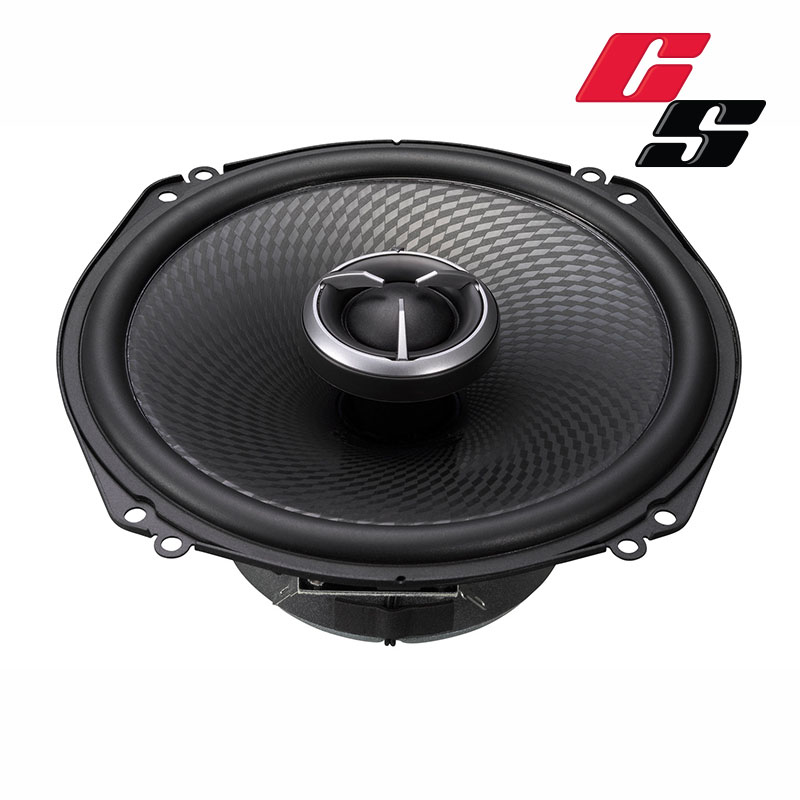

Kenwood Excelon KFC-X183C-3 Series 7″ 2-way car speakers
The latest Kenwood’s Excelon KFC-X183C-3 is a complete factory speaker update. It can accommodate up to 280W of power and is easy to mount in vehicles such as Dodge, GM, Toyota, and Chevrolet. A special multi-fit bracket is provided for each pair of Ken Wood Excelon KFC-X183C-3 speakers. It is easy to alter this bracket for use in various marks related to the car manufacturers referred to above. The speaker has also an excessive 28% larger diaphragm than the KFC-X173, providing excellent audio playback.
About the Kenwood Excelon KFC-X183C
Upgrade to excellence with Kenwood Excelon KFC-X183C-3
Kenwood Excelon Speakers KFC-X183 7″ are crammed into a 28 percent cone, which can also adapt into certain Dodge, GM, and Toyota vehicles’ plant openings (with some modifications). A smaller cone pushes more air to get the music absolute and punched like other speakers in the warehouse. A diamond pattern inscribed in the cones increases its intensity for better mechanical reaction and less distortion. The rubber surround avoids weathering and offers solid assistance, no matter what, to keep your music going.
Both high-frequency data are delivered seamlessly via the 1″ silk dome tweeter and specially designed magnet circuits and strong light magnets ensure these tweeters are highly precise without sounding harsh. Kenwood features multipurpose brackets and 6″x9,” which can be used to match any Dodge, GM or Toyota cars with these large bruisers.
Kenwood Excelon KFC-X183C-3 Product Summary
- Peak Power: 280W
Rated Input Power: 80W
Frequency Response 63Hz – 17kHz
Mounting Depth 2-7/16″
1″ Soft Dome Tweeter
Multi Bracket and 6×9 bracket
Kenwood Excelon KFC-X183C-3 General Features
- Diamond Array Pattern Diaphragm: Yes
– Size: 7 in (180mm)
– Diaphragm: P.P. Cone
– Surround: Rubber
– Basket: Steel (Black)
– Magnet: Ferrite
– Size: 1 in (25mm)
– Diaphragm: Soft Dome
Dimensions (without grill)
– Width: 6-9/16 in (166mm)
– Height: 6-9/16 in (166mm)
– Depth: 3-3/16 in (81mm)
– Mounting Depth: 2-7/16 in (62mm)
