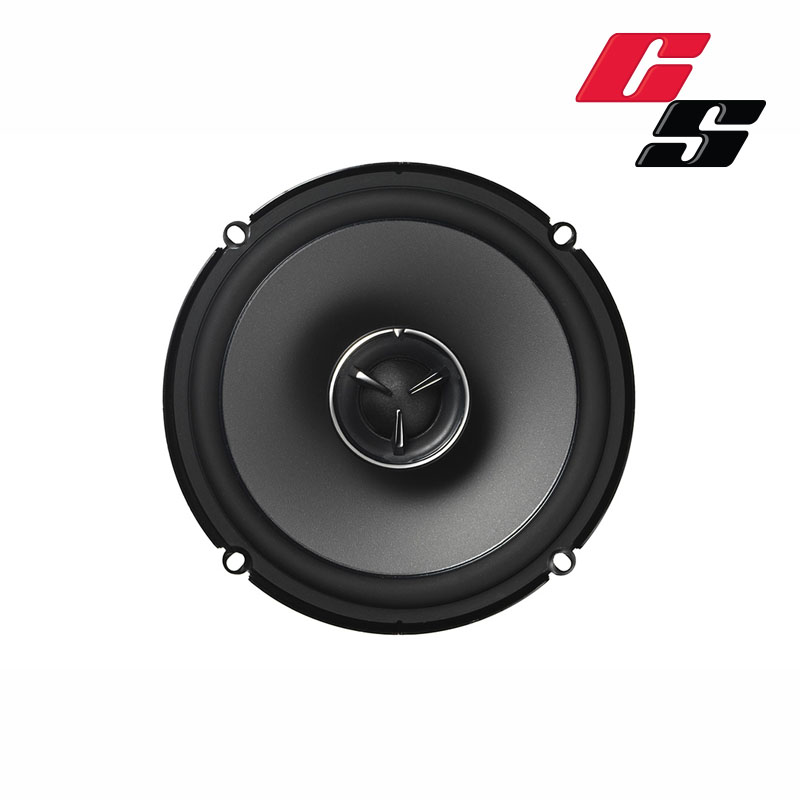

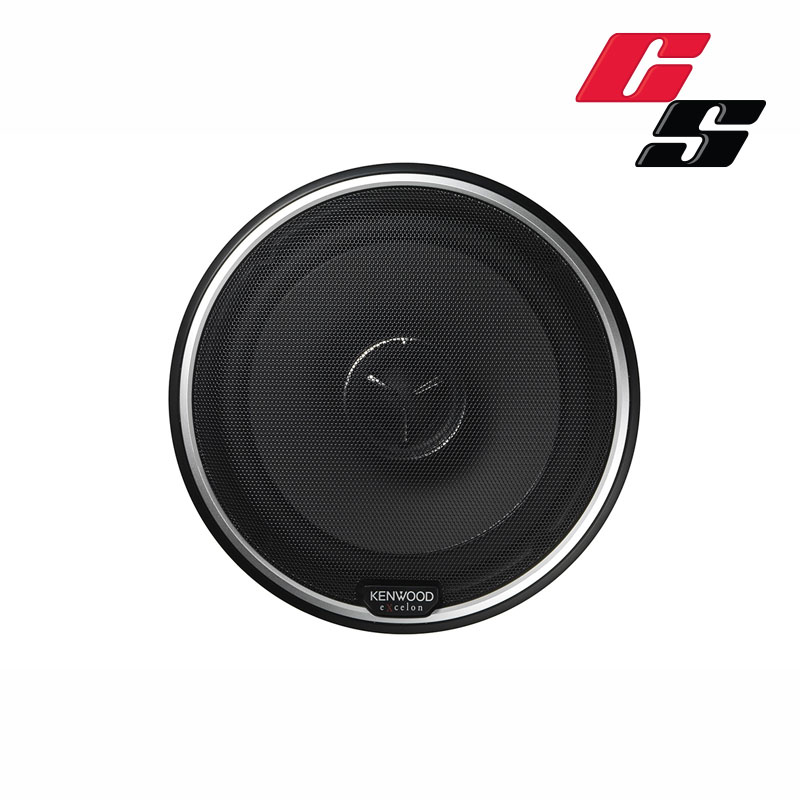

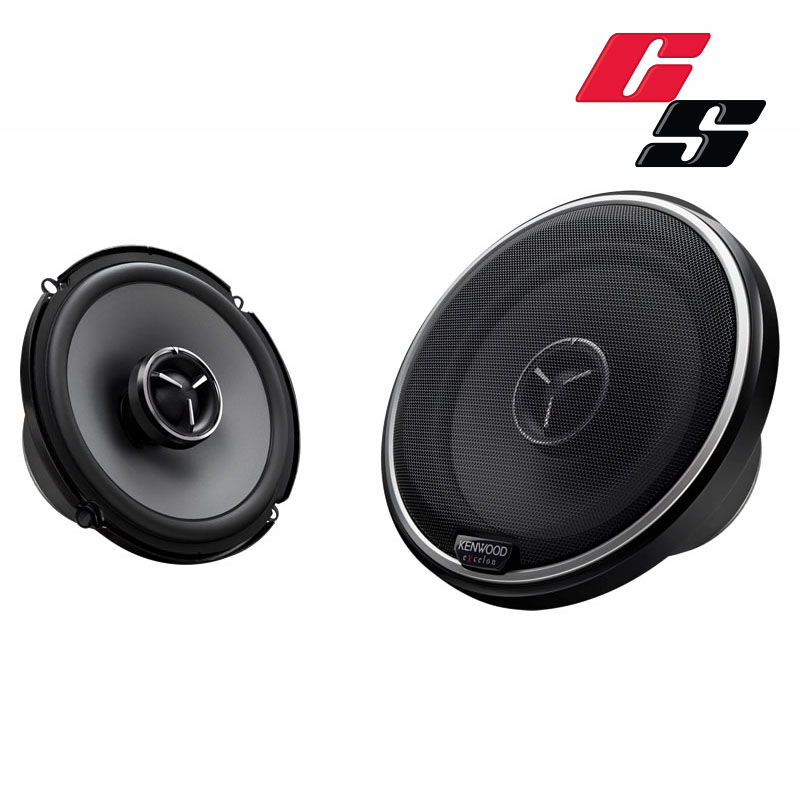

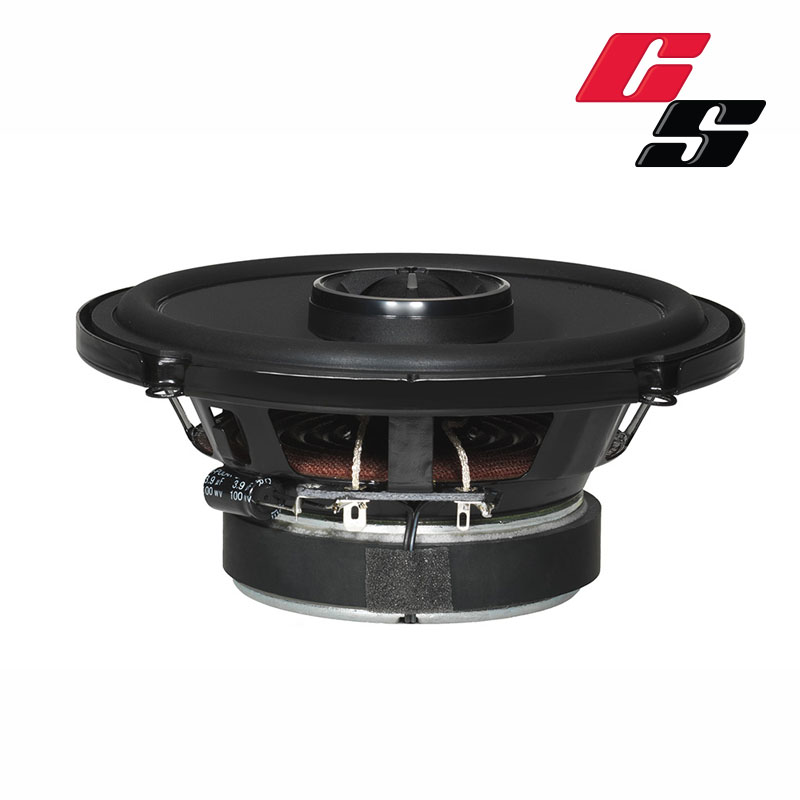

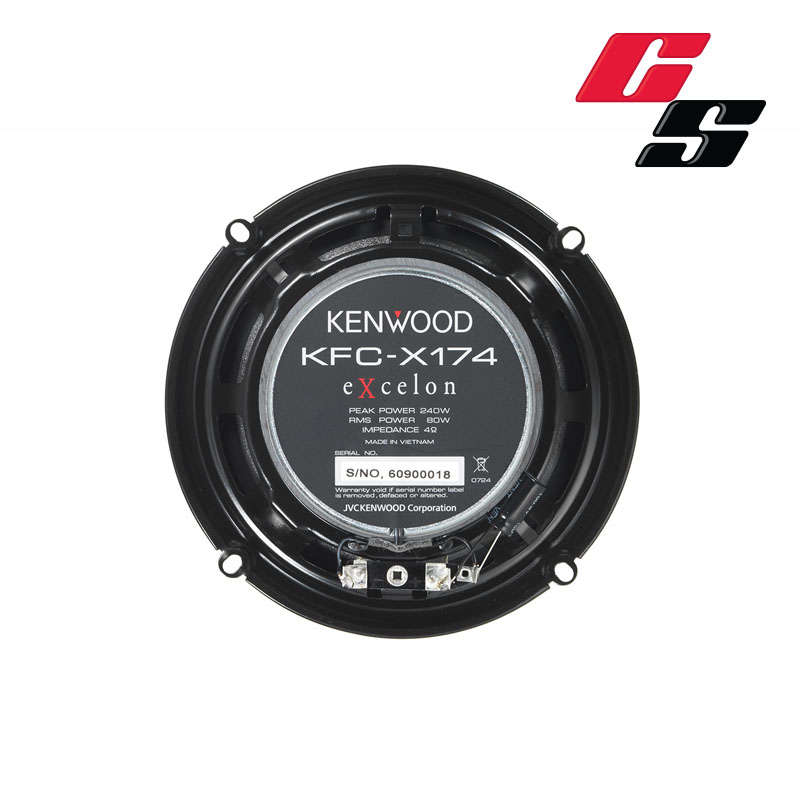

Kenwood Excelon KFC-X174
Excelon Series Kenwood Excelon KFC-X174 6-1/2″ 2-way car speakers\
About the Kenwood Excelon KFC-X174
Count on Kenwood
I know — your options for new speakers are awesome, but these X174 6-1/2 Kenwood Excelon “You’re listing 2-way car speakers. Their well-known 2-year guarantee is an important symbol of sound consistency, which these classics should predict. With a solid polypropylene woofer and a sturdy butyl rubber surround, you’ll get rich, complete sound that prevents weather and offers help regardless. A Significant 1 “Soft dome tweeter provides without harshness all the delicate high-frequency information.
You will appreciate high-end audio with speakers that will make each drive a happy one. And the well-constructed speakers accommodate a maximum of 80 watts of RMS so that you can optimize output with a nice amp.
| Model Name | KFC-X174 | ||
|---|---|---|---|
| System | 2way-2speaker | ||
| Power Handling | KITS Spec | ||
| Peak Input Power | 240W | ||
| Maximum Input Power | 100W | ||
| Rated Power | 50W | ||
| CTA Spec (CTA-2031 Compliant) | |||
| RMS Power | 80Watts RMS | ||
| Impedance | 4Ω | ||
| Sensitivity | 88dB/ W at 1 m | ||
| Frequency Response | 69 Hz~21,000 Hz | ||
| Woofer | Diaphragm | P.P. Cone | Gray |
| Size | Oversized 165 mm | 6-1/2 inch | |
| Surround | Rubber | ||
| Basket | Steel | ||
| Magnet | Ferrite | φ90 x t15 | |
| Tweeter | Diaphragm | Soft Dome | |
| Size | 25 mm | 1 inch | |
| Magnet | Nd | Up to Engineer | |
| Dimension | Woofer | ||
| with Grille | |||
| Width | 180.0 mm | 7-1/16 inch | |
| Height | 180.0 mm | 7-1/16 inch | |
| Depth | 84.2 mm | 3-5/16 inch | |
| without Grille | |||
| Width | 158.0 mm | 6-1/4 inch | |
| Height | 158.0 mm | 6-1/4 inch | |
| Depth | 75 mm | 2-15/16 inch | |
| Cut-out Diameter | 127.5 mm | 5 inch | |
| Tweeter Height | 19 mm | 3/4 inch | |
| Mounting Depth | 56.0 mm | 2-3/16 inch | |
| Accessory | Grille | 2 pcs | |
| Grille Holder | ○ | ||
| Punching Net | ○ | ||
| Network | |||
| Tweeter | with Woofer Frame | -6dB/oct | |
| GM Bracket | 2 pcs | ||
| Screw sets | |||
| Binding Head Tapping Screw | φ4 x 25 mm | 8 pcs | |
| Binding Head Tapping Screw | φ4 x 8 mm（TP Head) | 8 pcs | |
| Speed Nut | φ4 | 8 pcs | |
| Speaker Cord | 0.3 m | 1 set | |
| Adhesive Tape | ○ | 1 set | |
