Description

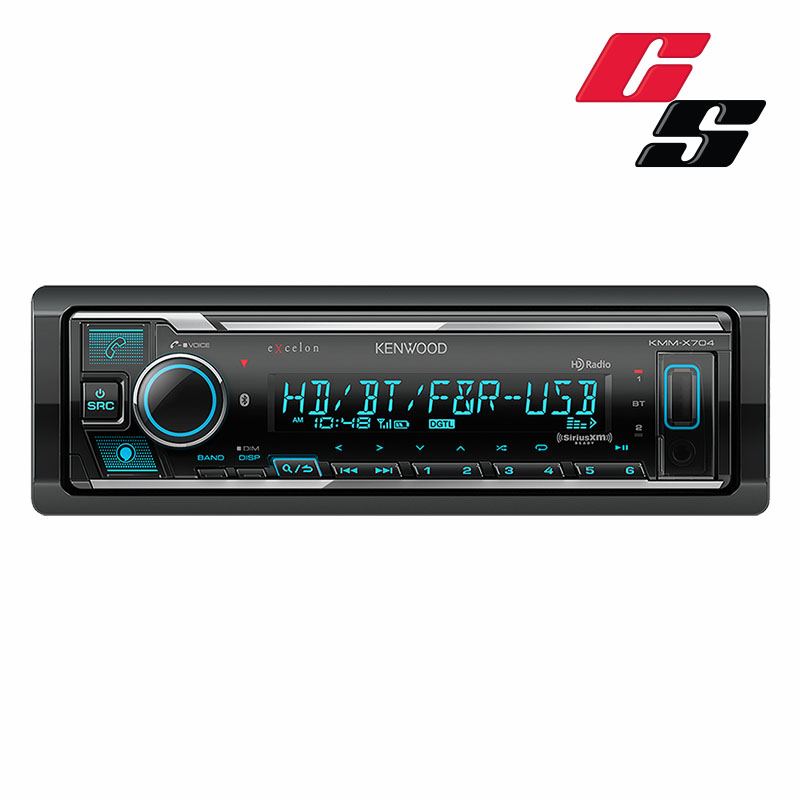

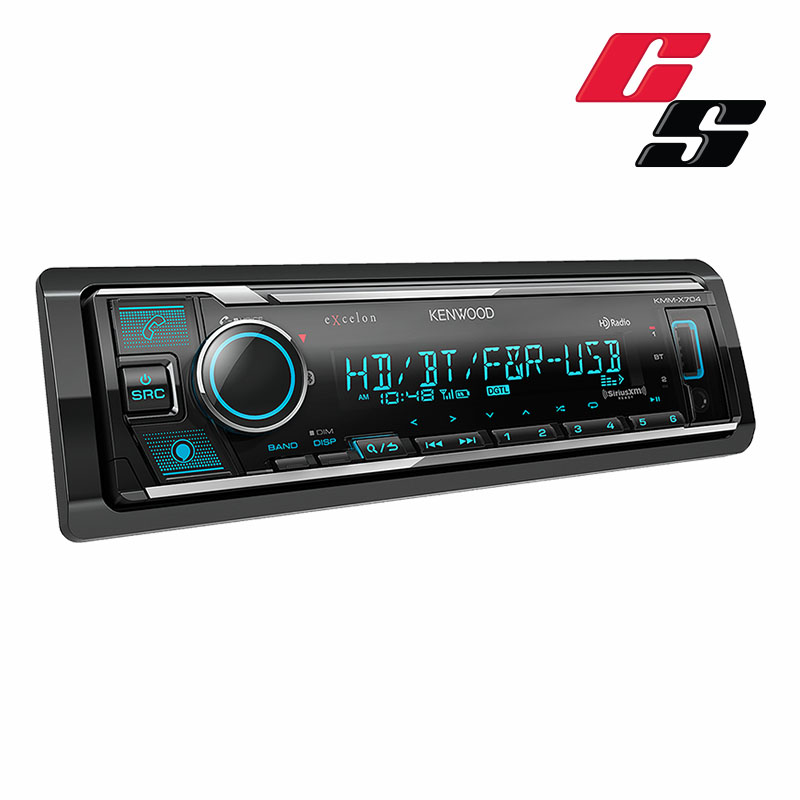

Kenwood Excelon KMM-X704
Digital Kenwood Excelon KMM-X704 media receiver (does not play CDs)
Smartphone Connectivity with Kenwood Excelon KMM-X704
Enjoy convenient control of popular apps like Spotify and Pandora,
built-in Bluetooth for hands-free calls and streaming music,
as well as the ability to use your smartphone like a wireless remote control.
The Best Audio Experience
Sound quality enthusiasts will love the playback support of various types of music formats,
including compatibility with FLAC files.
Simple touch screen sound customization is also available with its built-in 13-Band EQ and Digital Time Alignment.
Match Your Mood with Variable Color Illumination
Bright variable color LED’s can be adjusted to match any color dash lighting.
Kenwood Excelon KMM-X704 Equipped with Dual USB Ports
Play your music from one USB port and use the other to charge your device, or charge both at the same time.
Short Chassis Design
With audio receivers shorter in-depth than any of our previous models, installation is made easier in a wider range of cars than ever before.
SiriusXM Radio Ready comes Kenwood Excelon KMM-X704
Access additional music, sports and entertainment content on the go with SiriusXM Radio.
(Optional SiriusXM tuner required, sold separately)
Built-in HD Radio Tuner
HD Radio has the best selection of local radio with amazing features and no monthly fees. HD Radio provides CD sound quality from digital FM stations and FM sound quality from digital AM stations. You can even access additional HD multicasting stations that are not available on traditional analog radio.
Spanish and French Text Display
On-screen display menu now available in Spanish and French.
Remote Control (Optional)
Remote control (KNA-RCDV331) is optionally available.
KNA-RCDV331
Wireless Remote for Navigation, Multimedia and Audio Receivers
Alexa & iPhone Integration
Amazon Alexa Compatible: The Kenwood Excelon KMM-X704 features built-in Alexa with voice control. Alexa is a cloud-based voice control digital assistant developed by Amazon. You can ask Alexa to play music get weather reports, traffic information, control smart home devices, set reminders, and more. You’ll need to install the Amazon Alexa app (for Apple iOS 11.0+ and Android OS 5.0+) on your compatible smartphone device to setup the Kenwood receiver for voice control. Your Apple iPhone or Android smartphone will need to be connected via Bluetooth (not USB) to the Kenwood receiver and have an active data plan from your service provider with internet connection. You’ll simply press The “Amazon Alexa” key on the Kenwood head unit to activate Alexa voice control and speak into the included external microphone. The receiver will provide display feedback during Alexa voice control – “Listening” appears while you are saying your voice command, “Thinking” appears when Alexa is processing your voice command, and “Speaking” appears while Alexa is responding to your voice command. Alexa and your requested content or information will be heard over your vehicle’s speakers. Here are a few things you can do with Amazon Alexa voice control –
- Music & Audiobooks: Using Amazon Alexa voice control your can select, play, and control your favorite music from Amazon Music, Pandora, iHeartRadio, TuneIn, Spotify, and SiriusXM. You can also listen to audiobooks from Audible. *The Kenwood receiver does not support all of Amazon Alexa compatible music services.
- Phone Calls: Ask Alexa to call a contact or place of business. Access to your phone and contacts must be enabled within the Alexa app.
- Traffic & Parking Information: Ask Alexa for traffic information and available parking.
- Weather, News, & Sports: Check weather reports, news updates, and sport scores using Amazon Alexa and your voice.
- Smarthome Control: Use Amazon Alexa and your voice to control compatible smarthome devices, such as garage door openers and outdoor lighting.
- Questions & Answers: Amazon Alexa lets you ask questions about general things and check Wikipedia.
- Times & Alarms: Use your voice and Amazon Alexa, you can set timers and alarms.
Notes:
- The Amazon Alexa App is required for setup. The Kenwood receiver is recognized as “Headphones” when adding a device in the Alexa app. Click here for a video of the Amazon Alexa setup. The click here for instructions of the Amazon Alexa setup.
- Alexa cannot be accessed by simply saying “Alexa” like on some home devices; the “Alexa” button must be pressed on the front of the unit to access Alexa voice control.
- The Kenwood does not guarantee compatibility with all Amazon Alexa features and may not support some functions.
- Amazon Alexa voice control does not control non-Alexa source, audio, and menu functions of the Kenwood receiver.
- If your Apple iOS or Android device loses Bluetooth or Internet connection, Alexa voice control will be terminated.
- Alexa is a source input of the receiver. If you switch to another source input, Alexa voice control will be terminated.
- Only one Apple iOS or Android device can be connected for Alexa voice control at a time.
iPhone Direct Connection: The Kenwood Excelon KMM-X704’s front- or rear-panel USB port can be used to connect select Lightning Apple iOS devices to the receiver. The USB connection allows for playback of stored music and music apps on your iPhone or iPod touch through the Kenwood receiver. Use the Lightning-to-USB cable that came with your Apple device or an “Apple Certified” Lightning-to-USB cable (sold separately – see Accessories Tab) to connect your iPod/iPhone to the KMM-X704.
- Head Unit Control: From the head unit’s front-panel controls you can search for stored music by Playlist, Artist, Album, Song, Podcast, Genre, and Composer. The contents of a Playlist or Category can be searched alphabetically or numerically; you can even skip through the stored music files in specific increments (0.5/1/5/10%). The KMM-X704 also supports Repeat (file/all) and Random (album/all) playback functions of stored music on your iPod/iPhone. In addition, you’ll be able to control basic playback functions (such as Play/Pause, Previous/Next Track) from stored music and select music apps streamed to your iPhone. You can also choose to control your compatible Apple iPhone or touch from its own touchscreen, instead of the head unit.
- Song/Artist Info Display: The KMM-X704 will display your iPod/iPhone’s music file information such as Track number, Elapsed playing time, Artist name, Song title, and Album title.
- Battery Charging: The head unit’s USB connections provide 1.5A of current to power and charge your connected Apple iPod/iPhone when your vehicle’s ignition switch is set to the ‘ACC’ or ‘On’ position (if your iPod/iPhone has no initial battery charge, then the unit will not recognize it).
Apple Device Compatibility Chart: The Kenwood Excelon KMM-X704 is “Made for iPod/iPhone” compatible and supports the following iPod/iPhone model features (as of 1/28/2020):
Apple Device | Generation | Tested Version | Media Type | Control Type | Specific Apps | Display Type | Bluetooth | Charge | |||||||
Audio | Video | Head Unit | iPhone | Kenwood Remote App | Spotify | Pandora | Artist/Song Text | Track Info | Phone | Audio | Siri | ||||
iPhone | |||||||||||||||
5/5C | 10.3.3 | N | N | N | N | N | N | N | N | N | Y | Y | Y | Y | |
5S/6/6+ | 12.4.1 | Y | N | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | |
SE/6S/6S+ | 13.3 | Y | N | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | |
7/7+/8/8+ | 13.3 | Y | N | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | |
X/XR/XS/XSMax | 13.3 | Y | N | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | |
11/11Pro/11ProMax | 13.3 | Y | N | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | |
iPod touch | 5th | 9.3.5 | N | N | N | N | N | N | N | N | N | N | Y | Y | Y |
6th | 12.4.1 | Y | N | Y | Y | N | N | N | Y | Y | N | Y | Y | Y |
Notes:
- Two iPod/iPhone devices can be connected at the same time, but only one Apple device can be used for playback at a time. The unit does not combine the iPod/iPhone devices’ music libraries for simultaneous playback. You’ll have to switch sources to to select between your two connected iPod/iPhone devices.
- This unit does not support the iPod Nano or older 30-pin Apple iPod and iPhone devices.
- Apple iPod/iPhone software updates may change functionality results. If you download a newer software version, you may need to reset the head unit and your iPod/iPhone to regain functionality. If this doesn’t work, you may need to wait until a newer software update is available.
Built-in Bluetooth
Bluetooth 4.2: The Kenwood Excelon KMM-X704 is equipped with built-in Bluetooth (ver. 4.2) allowing you to make and receive phone calls wirelessly through the receiver; as well as stream music wirelessly from your smartphone to the head unit. In order to use Bluetooth wireless technology, your phone must also be Bluetooth and be able to interpret certain profiles. This unit is compatible with the following Bluetooth Profiles:
- Hands-Free Communication: HFP 1.7 (Hands Free Profile), PBAB 1.0 (Phone Book Access Profile).
- Audio Streaming: A2DP 1.2 (Advanced Audio Distribution Profile), AVRCP 1.6 (Audio/Video Remote Control Profile).
Note: Due to the differences in Bluetooth technology, some Bluetooth enabled devices may be incompatible, function improperly, or may not support all features when used with the Kenwood Excelon KMM-X704. Visit Kenwood’s Support Site for a complete list of compatible Bluetooth enabled phones.
SSP & USB Pairing: With Secure Simple Pairing (SSP), you can easily pair a Bluetooth enabled phone to the Kenwood Excelon KMM-X704 without having to enter pin codes or go through complicated settings. You can even pair your Apple iPhone (iOS 5+) by simply connecting it to the Kenwood head unit via USB and following a single prompt on the head unit’s display. You can pair up to five Bluetooth-enabled devices to the Kenwood head unit. When an already paired Bluetooth device is in close proximity to the receiver, the auto connection function automatically pairs the two units.
- Dual Phone Connection: Thanks to the Dual Phone Connection feature, two Bluetooth-enabled phones can remain connected to the Kenwood receiver. This means you can an answer an incoming call from either phone from the head unit. Also, both of your phone’s contact lists are downloaded to the receiver. To make a call from one of the phones using the Kenwood receiver, you simply have to select Phone 1 or Phone 2 on the head unit’s front-panel.
- Music Mix: The new Music Mix feature allows five Bluetooth audio source devices to be connected to the Kenwood receiver at one time, so you can switch between Bluetooth playback sources a lot easier and quicker. While “BT Audio” source is selected on the head unit, you can simply press the music playback button on your connected Bluetooth source devices to switch between devices and begin music playback. However, you cannot stream audio from two different Bluetooth audio source devices at the same time or combine music libraries or playlists from two different connected devices.
Bluetooth Hands-Free Communication: The head unit supports Bluetooth hands-free communication for your Bluetooth enabled mobile phone. The controls of the KMM-X704 can be used to dial a number, answer an in-coming call, or end a call. The unit also includes an external microphone (featuring adjustable gain), so you can carry on your side of the conversation while listening to the caller through your vehicles speakers. During a conversation, you can switch between the Private Mode (talking directly on your cell phone) and the Hands Free Mode.
- Answering a Call: When a call comes in, a ring-tone will be heard through your vehicle’s speaker and the caller’s name or phone number will be displayed. You can answer the call from the head unit’s front-panel controls, or setup the head unit to automatically answer the incoming call immediately or after 1-30 seconds. The KMM-X704 also supports the Call Waiting function, so you can answer another incoming call while suspending the current call you are on. Your compatible cell-phone must also support this feature.
- Dialing a Number: Using the KMM-X704, you can dial a phone number in one of the following ways:
- Enter Phone #: Allows you to directly dial a phone number up to 32 digits from the head unit’s control knob or remote control.
- Preset Dial: Allows you to register up to 6 phone numbers for quick dialing. The preset numbers can be accessed from the head unit’s front-panel controls.
- Phone Book: You can download phone book data from your mobile phone to the KMM-X704. You can then dial a contact within the phonebook from the head unit’s front-panel controls. Contacts are categorized as Home, Office, Mobile, Other, or General.
- Call History: The Call History is a list of calls that have originated from and were received by this unit that you can dial. You can select Outgoing, Incoming, or Missed calls.
- Voice Dialing: If your mobile phone supports voice recognition, then you can dial out by voice command. Simply speak into the included microphone.
Wireless Audio Streaming: The Kenwood Excelon KMM-X704 supports wireless audio playback (AD2P) and control (AVRCP) of a Bluetooth-enabled smartphone or audio player. You are able to stream your stored music library on your Bluetooth-enabled smartphone, as well as music apps downloaded on your smartphone to the Kenwood Excelon KMM-X704 for playback. When an incoming call or outgoing call is in progress from your Bluetooth enabled mobile phone, audio streaming will be paused so you can take your call. Once the call is finished, your streaming music will resume.
- SBC + AAC Codecs: In addition to support for the standard SBC Bluetooth audio codec, the KMM-X704 offers support of AAC. By supporting AAC, the KMM-X704 offers better audio performance of the music streamed from your Apple iPod, iPhone, or iPad.
- Advanced Music Browsing: In addition to basic playback functions (Play/Pause, FF/RW, Skip, Random/Repeat), the KMM-X704 lets you browse your stored music by Playlist, Artist, Album, Song, etc. Advanced music browsing is supported by Android 4.0+ smartphones and Apple iPhones 5.0+ (specific advanced functions vary by phone).
- Song/Artist Information: The head unit will also display your stored music and music app’s song information; such as Artist name and Song/Album title (not compatible with all apps).
Siri Eyes Free Control: When paired and connected to an iPhone with Siri via Bluetooth, the Kenwood Excelon KMM-X704 has the ability to access Siri through its front-panel controls and external microphone. Simply press-and-hold down on the head unit’s Answer Button to engage Siri and use the included microphone to communicate with Siri. Siri’s voice will heard through your vehicle’s speakers. All Siri functions including hands-free calling, music search, setting reminders, text-messaging, audible navigation, and more can be done through the KMM-X704 and its microphone. You even can ask Siri to get directions to a destination and the turn-by-turn instructions will heard through your vehicle’s speakers, while the on-screen map still displays on your iPhone with Siri. The head unit’s audio is attenuated while Siri provides audible directions.
Note: The head unit’s display will only indicate hands-free calling and Bluetooth audio information (all other functions of Siri are only audible through the Kenwood Excelon KMM-X704; visual data will still need to be viewed from your iPhone device).
External Mic: The external wired microphone offers improved audio quality versus an integrated microphone, so you can be heard easier over noisy traffic and road noise. You can adjust the volume level, noise cancellation, and echo cancellation of the microphone without affecting the other sources. The external microphone features an attached 10′ cable terminated by a right-angle 3.5mm connector which plugs into the mic input on the rear-panel of the head unit. The microphone offers an integrated mounting bracket which can be clipped to your vehicle’s sun-visor or taped to your dash.
Internet+SiriusXM+HD Radio
Internet Radio Apps: The Kenwood Excelon KMM-X704 allows you to access Pandora & Spotify online music services through your USB-connected or Bluetooth-connected iPhone, or Bluetooth-connected Android smartphone. Your Apple iPhone can be connected to the KMM-X704 via USB or through Bluetooth. Your Android smartphone must be connected via Bluetooth. You can also access Apple Music Radio through your USB or Bluetooth connected iPhone. Your iPhone or Android smartphone will need an active Data Plan account with connection to the Internet via 3G, EDGE, LTE (4G), or WiFi.
- Pandora App: The free Pandora App (for Apple iOS 11.0+ or Android 4.0+) lets you play music from the Pandora music service through the Kenwood Excelon KMM-X704 using your USB or Bluetooth connected Apple iPhone, or Bluetooth connected Android smartphone. The Kenwood Excelon KMM-X704 provides control over the Pandora music service and displays Artist, Album, and Song information. You can select Pandora stations from your station list and sort them by date or alphabetically. New stations can be created based on the current songs or artists playing. You can also skip song tracks within a station. You can even give songs a thumbs up or thumbs down, as well as bookmark song information. An active Pandora account is required.
- Spotify: The KMM-X704 has the ability to playback & control content from the Spotify music app (for Apple iOS 10.0+ or Android OS 4.0+) on your USB or Bluetooth connected iPhone, or Bluetooth connected Android smartphone. You can play, pause and skip tracks, browse playlists, albums and radio stations through the Kenwood receiver’s front-panel controls. You can even create your stations by entering a track, artist, or playlist. You also get song/artist information on the unit’s LCD touchscreen. If you are a Spotify Premium user (requires a monthly paid subscription), you can enjoy ad-free, high quality music even when there is no internet connection.
- Apple Music Radio (iPhone Only): You can playback Apple Music Radio on your USB or Bluetooth connected Apple iPhone (iOS 9.3.5+) through the Kenwood head unit. With a WiFi or cellular connection on your iPhone, you can listen to Beats 1 and other live radio stations through the Kenwood receiver. Apple Music subscribers can also listen to on-demand stations for almost any genre or create their own stations. You can use the head unit’s front-panel controls to select between your Apple Music Radio stations. The unit’s front-panel display will also indicate song/artist/album information (no album art).
Note: Access to these Internet Radio services will depend on the availability of a cellular and/or WiFi network for purposes of allowing your iPhone or Android smartphone to connect to the Internet. Not supported in Canada and only available in the United States.
SiriusXM-Ready: The Kenwood Excelon KMM-X704 is SiriusXM-Ready and compatible with the SiriusXM Connect Vehicle Tuner (220SXV300 sold separately). The SiriusXM Connect Vehicle Tuner supports SiriusXM programming with access to 140+ SiriusXM channels via subscription; check out the most popular SiriusXM subscription packages here. Additional features of the SiriusXM Connect tuner include:
- Channel List w/ Category Search: The Channel list displays a list of all available channels. You can also search and list channels in specific categories.
- Song/Artist Info: Displayed Information such as Channel Name, Artist Name, & Song Title can be viewed on the head unit’s LCD.
- SmartFavorite Presets: Up to 18 SiriusXM Satellite Radio station presets can be saved. These 18 SiriusXM presets are automatically identified as SmartFavorites for advanced features such as Replay, TuneStart & TuneScan (see below).
- Replay: When you select a SmartFavorite preset you can rewind and replay up to 30 minutes of any of the missed news, talk, sports or music content.
- TuneStart: With the TuneStart enabled, playback will automatically start from the beginning of a song when you tune to a SmartFavorite preset channel.
- TuneScan: TuneScan gives you a short preview of the songs that you have missed on each of your Smart Favorite Preset music channels or currently tuned music channel.
- Parental Control: Channels containing unsuitable content for children can be blocked. When enabled, The Parental Control feature requires you to enter a 4-digit passcode to tune to the locked channels.
Note: A separate SiriusXM Satellite Radio subscription is required (operates on the XM Network). However, you can easily add this SiriusXM tuner to an existing Sirius or XM account for a Multi-Radio Discount Plan.
HD Radio: With its built-in HD Radio tuner, you can receive digital AM/FM broadcasts from local stations where available. HD Radio significantly improves AM/FM audio quality and reception, as well as includes information such as artist name and song titles or traffic news, viewable on the receiver’s display. HD Radio Technology will deliver high-quality digital sound. AM digital will have FM-like quality in stereo (70dB SN @ 40-15kHz), while FM digital will have CD-like quality (75 dB SN @ 20-20kHz) with static free and clear reception. The unit’s built-in HD Radio tuner allows analog AM/FM tuning as well.
- Seek Tuning: You can choose one of three seek modes: Auto 1 (seek tuning), Auto 2 (cycles through and tunes the selected band’s preset stations only with each button press), or Manual. You can also setup the KMM-X704 to search only HD Radio stations, Analog AM/FM stations, or both.
- Tuner Presets: The KMM-X704’s tuner features 3 FM banks (1, 2, 3) and 1 AM bank for storing presets. You can store 6 presets for each AM/FM bank giving you a total of 18 FM presets and 6 AM presets (total of 24). Not only does the digital media receiver’s tuner allow you manually enter your desired presets you can choose to have the unit automatically put stations with good reception in the memory banks automatically; this is a handy feature when traveling.
- Station Info, Multicasting, & Emergency Alerts: AM/FM digital stations can offer text and data such as artist names and song titles. In addition to conventional broadcasts, with HD Radio broadcasting it is possible to choose from up to 8 multicast programs (HD1 to HD8). You can even receive an emergency alert message while listening to another source or while in Standby mode, via HD Radio Broadcast
Note: HD Radio is the system for digital AM and FM broadcasting in the U.S. More than 2,000 radio stations are broadcasting their primary signals in digital HD Radio technology, as a free service. Go to HDRadio.com to check for HD
USB/Aux Playback
USB MSC Playbaack (Dual USB Ports): The Kenwood Excelon KMM-X704 is equipped with two USB (type-A) ports; there is a front-panel USB port that is hidden behind a flip-out cover and rear-panel USB port that is attached to the rear-chassis via a 38″ cable. The USB ports enable connection of USB mass storage class (MSC) devices like USB thumbdrives, USB card readers, or portable digital audio players. You can insert a compatible USB MSC device into the head unit’s USB ports for playback, control, and song/artist display of a variety of music files.
- Music Drive: The Drive Change feature lets you switch between multiple memory cards (up to 4) in a USB multi-card reader. When a mass storage class (MSC) compatible portable digital audio player is connected to the head unit’s USB input, the unit’s Drive Change features lets you select between the device’s internal memory or external memory (such as a microSD card) for stored music playback.
- USB Charging: USB devices that can be charged via USB will be charged when plugged into the digital media receiver’s USB ports (max. 1.5A), and the vehicle’s ignition switch is set to ACC or On.
Notes:
- Two USB MSC devices can be connected at the same time, but only one device can be used for playback at a time. The unit does not combine the USB devices’ music libraries for simultaneous playback. You’ll have to switch sources to to select between your two connected USB MSC devices.
- Not compatible with Android OS devices and USB hubs.
Compatible Music Files: The Kenwood Excelon KMM-X704 supports the following types of music files loaded onto USB mass storage class devices.
Media Type | USB (MSC) |
File System | FAT 12/16/32 |
Playable File Types | MP3: bit rate of 8-320kbps w/ sampling rate of 8-48kHz WMA: bit rate of 32-192kbps w/ sampling rate of 8-48kHz AAC: bit rate of 32-192 kbps w/ sampling rate of 8-48 kHz WAV: bit depth of 16-bit w/ sampling frequency of 44.1kHz FLAC: bit depth of 24-bit w/ sampling frequency of 96kHz |
Maximum # of Folders/Files | 999 folders/20,480 files (999 files per folder) |
Tags | ID3 tag (version 1.0/1.1/2.2/2.3/2.4), WMA tag, AAC tag, FLAC tag, WAV tag |
Playback & Search Functions: The Kenwood Excelon KMM-X704 offers a variety of playback and search functions to help you find and enjoy your music on USB.
- Music Search: The Kenwood AM/FM digital media receiver features a Music Search feature which allows you to scroll through and select your music folders and files using the head unit’s rotary knob.
- Repeat & Random: You can repeat the playback of a music file or folder on a USB device. You can also randomly play back all files within a folder of a USB device.
- Last Position Memory: If the unit is shut off or switched to the tuner mode while a USB is playing, the next time USB is selected as the source, playback will resume from the point where it left off.
Aux In: The unit is equipped with a front panel 3.5mm minijack auxiliary input that can be used to input audio from a portable audio source, such as a portable MP3 player. The Aux input must be turned on to function.
Audio Section
Excelon Series: The KMM-X704 digital media receiver is part of Kenwood’s Excelon series line-up. It incorporates the latest technologies and delivers the highest sonic performance. From advanced audio tuning capabilities, crossover and equalizer system, high-voltage preouts (5V), plus a two-year warranty – Kenwood Excelon represents exceptional audio quality with long-lasting dependability.
24 Bit D/A Converter: The Kenwood Excelon KMM-X704 utilizes a 24-bit digital to analog converter for superior sound quality.
MOSFET Amplifier: The Kenwood Excelon KMM-X704 is equipped with a MOSFET amplifier. Compared to conventional power supplies, the MOSFET amplification circuit is smaller and more efficient, and it delivers increased power with less distortion and absolutely zero on/off switching noise. More power means louder and cleaner music at higher volumes because you’re not pushing the limits of the amplification circuit. The power output specs for the KMM-X704 are as follows:
- Full Bandwidth Power: 22 watts RMS x 4 channels (at 4 ohms, 20-20kHz, 1% THD)
- Maximum Output Power: 50 watts x 4 channels

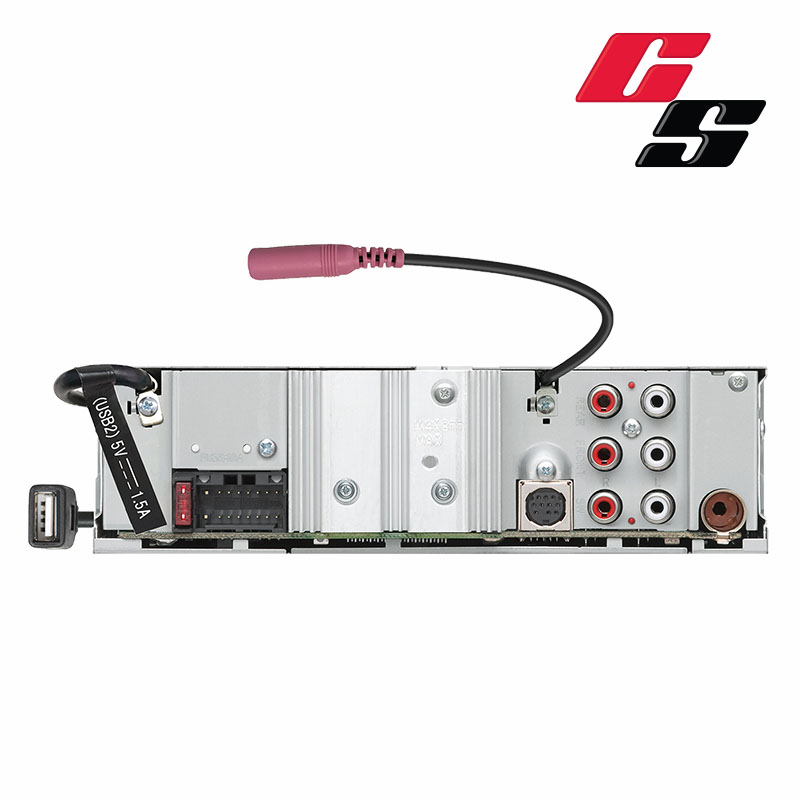

6Ch/5V Pre-Outs + Sub Control: The KMM-X704 is fitted with front, rear and subwoofer 5-volt pre-outs. The front and rear speaker preamp outputs are balance and fade adjustable. The subwoofer preamp output is non-fading and features independent level control (-50 to +10).
Vehicle Settings: In order to optimize the sound quality in your vehicle, you can indentify the type of vehicle you have, select speaker sizes & locations, as well as configure listening distances.
- Car Type: Select your car type to automatically set the delay time of each speaker for timing adjustment of sound output of each channel to have the highest surround effect. Choose from Compact, Full Size Car, Wagon, Mini Van, SUV, or Off
- Speaker Size: You can select which size speakers are in your vehicle – Tweeter (Small, Medium, Large, or None), Front & Rear (3.5″, 4″, 4.75″, 5″, 6.5″, 6.75″, 7″, 4×6″, 5×7″, 6×8″, 6×9″, 7×10″ or None), and Sub (6.5″, 8″, 10″, 12″, 15″ or Over, None).
- Rear Speaker Location: You can indicate the location of your vehicle’s Rear speakers. Choose from Door, Rear Deck, 2nd Row, or 3rd Row.
- DTA (Digital Time Alignment): For a better sound-stage you can select your optimal listening position. You can choose from All, Front Left, Front Right or Front. You can also select to manually fine tune the sound stage, using Digital Time Alignment (DTA) by selecting the distance (0-20′) for each individual speaker in the vehicle compared to your listening position.
High Pass & Low Pass Crossovers: You are able to select independent high pass crossovers for your tweeters, front speakers, and rear speakers; as well as a low pass crossover for the head unit’s sub output.
- Tweeter: Set high pass filter (HPF) for tweeters.
- Frequency: 1kHz, 1.6kHz, 2.5kHz, 4kHz, 5kHz, 6.3kHz, 8kHz, 10kHz, 12.5kHz
- Gain: -8 to 0 dB
- Front & Rear: Independently set high pass filter (HPF) for front & rear speakers.
- Frequency: 30Hz, 40Hz, 50Hz, 60Hz, 70Hz, 80Hz, 90Hz, 100Hz, 120Hz, 150Hz, 180Hz, 220Hz, 250Hz, Through (Full-Range)
- Slope: -6dB, -12dB, -18dB, -24dB
- Gain: -8 to 0 dB
- Sub: Set low pass filter (LPF) for the sub output.
- Frequency: 30Hz, 40Hz, 50Hz, 60Hz, 70Hz, 80Hz, 90Hz, 100Hz, 120Hz, 150Hz, 180Hz, 220Hz, 250Hz, Through (Full-Range)
- Slope: -6dB, -12dB, -18dB, -24dB
- Phase: Reverse (180°), Normal (0°)
- Gain: -8 to 0 dB
Equalizer: The Kenwood Excelon KMM-X704 offers 8 EQ Presets for easy adjustment, a 3-band Easy EQ, a 13-band Manual EQ for customized tuning, a Drive EQ mode to overcome road noise, and a Stage EQ for better imaging. Separate EQ settings and EQ presets can be stored for each source or you can apply one EQ preset or curve to all sources.
- Preset EQ: The integrated equalizer offers 8 preset sound modes (Rock, Pops, Easy, Top 40, Jazz, Natural, Drive EQ, or User) suitable for the music genre of your choice.
- Easy EQ: The Easy EQ allows you to manually adjust the receiver Bass, Midrange, and Treble from 9dB to +9dB.
- 13-Band EQ: The 13-Band EQ consits of 62.5Hz, 100Hz, 160Hz, 250Hz, 400Hz, 630Hz, 1kHz, 1.6kHz, 2.5kHz, 4kHz, 6.3kHz, 10kHz, & 16kHz frequencies that can be adjusted from -9dB to +9 dB. The Q-factor of each frequency can also be adjusted to 1.35, 1.5, or 2.0
- Drive EQ: The Drive EQ mode helps you hear your music over road noise. It boosts certain frequency ranges that become hard to hear due to road noise.
- Stage EQ: Stage EQ virtually lifts the sound up to ear-level for better imaging inside your vehicle.
Audio Settings: The Kenwood Excelon KMM-X704 offers a variety of audio settings to further enhance your music listening experience.
- Sound Reconstruction: When MP3, WMA, AAC files encoded at a low bit rate (less than 96 kbps, 44.1k, 48kHz) are played, the Sound Reconstruction function restores their high frequencies so the sound quality is closer to files encoded at a high bit rate. The processing is optimized for the compression format and the bit rate used. When Sound Reconstruction is Off, the unit plays the original sound stored in the audio file.
- Space Enhancer & Sound Realizer: The Spacer Enhancer widens the soundstage inside your vehicle, while the Sound Realizer makes your music sound more realistic.
- Loudness, Bass Boost & Bass Extension: The Loudness feature boosts low and high frequencies to produce a well-balanced sound at a low volume level. The unit’s Bass Boost enhances low bass frequencies at any volume level. There is also a Bass Extension feature which further enhances the unit’s bass output at extremely low frequencies around 62.5Hz.
- Volume Offset: The level of each source may be independently adjusted to prevent radical leaps in output volume when switching from one source to another. The available settings range from -15 to +6.
Key Beep: The in-dash head unit provides an audible beep to confirm button operation. This function can be turned On or Off.
Remote Control
Kenwood Remote App (for iOS & Android): The Kenwood Remote App (for Apple iOS 8.0+ and Android OS 4.4+) lets you wirelessly control the Kenwood receiver from your compatible Apple iOS device (via Bluetooth or USB) or Android device (via Bluetooth only). The Kenwood Remote App provides traditional touchscreen control, as well as directional and freeform gesture control from your compatible mobile device.
- Source Information & Control: The Kenwood Remote App provides a Source Control screen with a list of the receiver’s built-in sources and connected sources to choose from, so you can change the head unit’s source from your mobile device. Once an input is selected, the app displays source information such as station number, track number & playback time, as well as song/artist information (when applicable). From the the app, you can also seek stations and tracks, as well as Play and Pause your music.
- Audio Settings: From the application on your mobile device, you can adjust the receiver’s volume up or down. In addition, audio settings such as EQ, Crossover, DTA, and other audio adjustments can be easily set using the Kenwood Remote application.
- Media Player: The application’s Media Player screen lets you playback your device’s stored music library through the Kenwood receiver. From the app on your Apple iOS or Android device, you can control basic playback functions like Play/Pause, Previous/Next Track and Repeat/Random. The Android version of the app even lets you browse your music library by category (Song/Album/Artist/Playlist/Mood). Song, artist, and album information (along with Album Art) will displayed on your Apple iOS or Android device’s touchscreen.
- App Launcher (Android only): The App Launcher feature of the Android version of the Kenwood Remote app lets you access 3rd party applications within the Kenwood Remote app’s user interface. The App Launcher can contain up to 24 of your favorite apps for quick access.
Notes:
- You will need to indicate within the head unit’s menu what type of device (Apple iOS or Android) you’ll be using the Kenwood Remote App on before the application will connect and function with the receiver.
- When using the Kenwood Remote App with your compatible Apple iOS device, the application and device must be connected to the receiver via Bluetooth (not USB) for playback of Bluetooth audio. For playback of a USB-direct connection from an Apple iOS device, the device and application must be connected to the head unit via USB (not Bluetooth).
Steering Wheel Remote Compatibility: The head unit features an OEM steering wheel remote control input wire (blue/yellow) within the included wiring harness that lets you keep your vehicle’s factory radio steering wheel remote controls when used with an optional steering wheel control adapter (vehicle specific and sold separately).
Optional IR Remote: The KMM-X704 is compatible with Kenwood’s IR remote control (RC-406, sold separately) for wireless operation of the receiver.
Display Features
Detachable Face: The Kenwood Excelon KMM-X704 features a detachable face-plate to deter theft. There is no protective face case included. An optional soft face case (142DFC1X, sold separately) can be purchased for this unit. A face-fixing screw is supplied for making the face non-detachable, if desired.
1.5 Line Display: The KMM-X704 is equipped with a 1.5-line LCD screen which allows you to view source information along with the clock (the time will be in a smaller text). You can select between English, Canadian French, or Spanish text.
Variable Color Illumination: The Kenwood Excelon KMM-X704 features variable color display and button illumination. You can choose from one of 24 preset colors, have the unit scan through all 24 preset colors continuously, or customize your own color (RGB; 0-9). The custom setting allows you to individually adjust the intensity of Red, Green, and Blue (from 0-9) to better match your vehicle’s interior lights. The same color setting is applied to both the display and buttons, or you can choose a different color for Zone 1 and Zone 2 (see owner’s manual illustration). The Kenwood logo remains red.
Text Scroll: The KMM-X704 will display song/artist information text from USB, Bluetooth, and iPhone. You can set the text scrolling feature to three different modes (Auto, Once, or Off) to scroll longer titles across the screen.
Brightness & Dimmer: You can adjust the brightness of the LCD and button illumination independently or together (from 0-31). You can also dim (on or off) the display and button illumination. You can even set a specific time for the “Off” and “On” dimmer setting to be activated.
12Hr/24Hr Clock: The head unit can be set to display a 12hr or 24hr clock. The unit also displays the day (Sun, Mon, Tue, Wed, Thu, Fri, or Sat). The clock is only displayed when selected and does not display simultaneously with song/artist or station information. The day & time can be selected to remain on, even if the head unit is switched off (as long as the vehicle’s key is in the “accessory” or “on” position).
Demo Mode: This unit features a Demo mode which can be turned On or Off within the menu.
Music MixUp to 5 Bluetooth® devices can be paired to the receiver at the same time. You can enjoy audio streaming just by switching the devices with your friends or family.
|
Dual Phone ConnectionWhile you are connected through Bluetooth, with a touch of a button you can switch between two phones.
|
Remote AppA smartphone application can control most basic functions of the receiver over the Bluetooth connection of the paired phone (iPhone or Android).
|
Wireless Music Browsing (AVRCP 1.5 / 1.6)Search and select songs from your music collection through a Bluetooth connection.
|
Graphic EQ / Digital Time Alignment13-Band equalizer and DTA gives optimal tuning enhancements for listeners.
|
Drive EQBoosts specific frequencies in the audio signal to overcome the negative impact of road noise.
|
FLAC SupportedCompatible with various audio file formats from high-res FLAC and WAV, to MP3, WMA and AAC.
|
Android Rapid ChargeRapidly charge your compatible Android smartphone with the USB port, up to a maximum of 1.5A.
|
Variable Color IlluminationBright variable color LEDs can be adjusted to match any
|
Short ChassisWith receivers shorter in depth than any of our previous models, installation is made easier in a wider range of cars than ever before. |
Features & specs
Expandability | ||
---|---|---|
AUX Input | Front | |
Audio/video Input | — | |
USB Input | Front/Rear | |
Backup Camera Input | No | |
Second Camera Input | No | |
CarPlay | No | |
Android Auto | No | |
Siri Control | Yes | |
Alexa Voice Control | Y | |
Android Control | Yes | |
Memory Card Slot | USB | |
Bluetooth Compatible | Built-in | |
Satellite Radio Ready | SiriusXM 2.0 | |
HD Radio | Built-in | |
Navigation | — | |
iPod Compatibility | ||
Full size | No | |
Nano | No | |
Touch | 6 and newer | |
iPhone | 5S and newer | |
General | ||
RMS Power (CTA-2006) | N/A | |
RMS Power (Manufacturer) | 22 watts | |
Peak Output | 50 watts | |
RMS Power Bandwidth | 20-20kHz | |
Preamp Outputs | 6-channel | |
Sub Preamp Outputs | Yes | |
Switchable Rear Preamp Outputs | No | |
Video Screen | No | |
Navigation App Compatible (iOS) | ||
Navigation App Compatible (Android) | ||
Preamp Voltage | 5 volts | |
Screen Size | 0 | |
Display Color | Variable | |
Key Button Color | Variable | |
EQ Bands | 13 | |
Wireless Remote | Optional | |
Steering Wheel Control Compatible | Adapter required | |
Parts Warranty | 2 Years | |
Labor Warranty | 2 Years | |
Tuner | ||
FM Sensitivity | 7.2 dBf | |
European Tuning | Yes | |
Seek/Scan | Seek | |
Radio Data System | Yes | |
File Playback | ||
Music File Playback | MP3,WMA,AAC,WAV,FLAC | |
High-res Playback | FLAC (96kHz) | |
Second Camera Input Lane Watch | N |
Reviews
There are no reviews yet.
